NTE Fans and accessories

Industrial Electronics along with NTE is pleased to announce the launch of its new line of quality Fans and accessories.

Cooling fans are required to protect critical electronic components by keeping them at an optimal operating temperature, thus protecting against thermal variances that could harm the components and preventing a premature failure, while ensuring optimal performance. These fans utilize a propeller to create a large airflow in the direction of the axis, moving the air in a direction parallel to the axis of the blade.

AC fans provide a constant flow, while DC fans can run at variable speeds. DC fans consume less power, generate lower levels of EM and RF Interference, and are much quieter in operation, making them ideal for personal computers and server applications.



Features of this new line include:



• AC and DC Types:
  • 12 and 24VDC
  • 100-125VAC

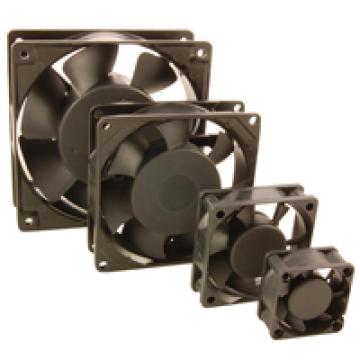

• Sizes Include:
  • 40x40mm
  • 60x60mm
  • 80x80mm
  • 92x92mm
  • 120x120mm
• Call for sizes,voltages and accessories not listed
• Ball Bearings for smoother operation and longer life 50,000 hours AC up to 70,000 hours DC
• 11.8" (300mm) Wire Leads
• Locked Rotor Protection
• All are RoHS Compliant
• Most are UL Recognized
• Compare to Comair Rotron, EBM Papst, Globe Motors , Interfan, Orion, Oriental, NMB, Sunon





Specifications Electrical Characteristics



• Insulation Resistance: 10M Min. (at 500VDC) between frame and
• positive terminal
• Dielectric Strength:
• DC Types: 500VAC, 1 minute; 600VAC, 1 sec at 5mA Max.
• between frame and positive terminal
• AC Types: 1500VAC, 1 minute; 1800VAC, 1 sec at 5mA Max.
• between frame and positive terminal
• Life Expectancy:
• DC Types: Approx. 70000 hrs at rated voltage, +40 C,
• 15% to 65% RH
• AC Types: Approx. 50000 hrs at rated voltage, +25 C,
• 15% to 65% RH





Mechanical Characteristics Frame:



• DC Types: Thermoplastic, Black, UL94V−0
• AC Types: Die−Cast Aluminum, Black
• Impeller: Thermoplastic, Black, UL94V−0
• Bearing:
• DC Types: 2 Ball Bearings
• AC Types: Ball Bearing
• Weight:
• DC Types: Approx. 164g (25mm); 250g (32mm); 290g (38mm)
• AC Types: Approx. 370g (25mm); 500g (38mm)





Environmental Characteristics



• Operating Temperature: −10 C to +70 C
• Storage Temperature: −40 C to +75 C
• Operating Humidity: 35% to 85% RH
• Storage Humidity: 35% to 85% RH
• We are also carrying metal fan guards and filter kits for all size fans.
• Each fan comes packaged in it's own attractive color box.
• We will be offering retail packaging at a later date.





Part numbers & descriptions : (Updated on June 2014)
