1092 Series LED Panel Mount Indicators Tab Terminals

We are pleased to announce the addition of

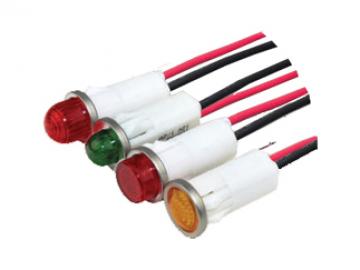

1092 Series LED Panel Mount Indicators offer low energy consumption, water, oil, gas and dust tight gasket extra , fast on/off cycling, low heat generation, and a long operating life of more than 100,000 hours. They provide superior daytime visibility and achieve full brightness in microseconds. These LEDs feature a front panel snap­-in mounting design, allowing for quick and easy installation. Available in four different lens styles, including hi hat, hi dome, semi dome, and small dome, the 1092 Series meets a wide range of application requirements. Offered in red, green, and amber colors, the 125VC LED indicators are designed with wire leads (4.4”/4.8”) or tab terminal (0.187” x .020”). They are cULus Compliant.



1092 Series Red 13000 mcd 12V , 28V and 125 VAC Hi-Hat and Domed Wire Lead Panel Mount LED Indicator



Part Numbers  with Wire Leads Include

1092C1-12V 1092M1-12V 1092M5-12V 1092M3-12V 1092D1-12V 1092A1-28V 1092M3-28V 1092A3-12V

1092D5-28V 1092A1-12V 1092D3-12V 1092A3-28V 1092C1-28V 1092M1-28V 1092M5-28V 1092C3-28V

1092D5-12V 1092C5-28V 1092C5-12V 1092D1-28V 1092C3-12V 1092A5-28V 1092A5-12V 1092D3-28V 1092D3-

125VAC 1092C3-125VAC 1092A1-125VAC 1092M5-125VAC 1092C5-125VAC 1092D1-125VAC 1092A3-125VAC

1092M3-125VAC 1092A5-125VAC 1092D5-125VAC 1092C1-125VAC 1092M1-125VAC



Key Features

• Snaps fit into 0.500” (12.7mm) panel hole
• LED illumination
• Four different lens styles available: Hi Hat, Hi Dome, Semi Dome and Small Dome
• Front-panel mount
• Front panel snap-in mounting requires no additional hardware
• Life expectancy of 100,000 hours
• High brightness LEDs for daylight viewing
• UL/cUL Listed. File Number E20356
• Order speed nuts separately to provide maximum fastening power with minimal installation torque.
• Order gasket separately to provide water, oil, air and dust tight.
• 0.187” (4.75mm) tab terminal
• 4.4”/4.8” wire leads
• Available in operating voltage of 12V, 28V and 125V
• Three colors available: Red, Green, Amber
• Transparent and clear lenses provide visibility during the daylight
• Solution to retrofit: save energy and reduce the costs
• 'D' mounting hole aids anti-rotation
• Compliant with RoHS and REACH requirements
• For customized options, please contact us





Part Numbers with 3/16" .187 4.55mm terminals Include

1092QC1-28V 1092QC3-28V 1092QM5-12V 1092QA1-28V 1092QA5-28V 1092QD5-12V 1092QA3-12V

1092QA1-12V 1092QM3-28V 1092QC3-12V 1092QD3-12V 1092QC5-28V 1092QD5-28V 1092QD1-12V

1092QD1-28V 1092QD3-28V 1092QM5-28V 1092QA3-28V 1092QC5-12V 1092QA5-12V 1092QM1-12V

1092QM1-28V 1092QM3-12V 1092QC1-12V 1092QC1-125VAC 1092QA1-125VAC 1092QA5-125VAC 1092QM5-

125VAC 1092QA3-125VAC 1092QC5-125VAC 1092QD5-125VAC 1092QD1-125VAC 1092QD3-125VAC

1092QM3-125VAC 1092QM1-125VAC 1092QC3-125VAC



Applications



Industrial Transportation Food Service

People Movers Medical Maritime

Oil and Gas Industry Manufacturing Automation & Control



Key Features

• Snaps fit into 0.500” (12.7mm) panel hole
• LED illumination
• Four different lens styles available: Hi Hat, Hi Dome, Semi Dome and Small Dome
• Front-panel mount
• Front panel snap-in mounting requires no additional hardware
• Life expectancy of 100,000 hours
• High brightness LEDs for daylight viewing
• UL/cUL Listed. File Number E20356
• Order speed nuts separately to provide maximum fastening power with minimal installation torque.
• Order gasket separately to provide water, oil, air and dust tight.
• 0.187” (4.75mm) tab terminal
• 4.4”/4.8” wire leads version also available
• Available in operating voltage of 12V, 28V and 125V
• Three colors available: Red, Green, Amber
• Transparent and clear lenses provide visibility during the daylight
• Solution to retrofit: save energy and reduce the costs
• 'D' mounting hole aids anti-rotation
• Compliant with RoHS and REACH requirements
• For customized options, please contact us
