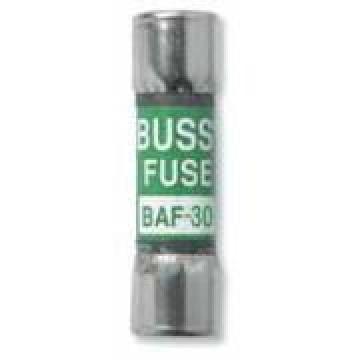

BAF Series Fast-Acting Midget Fuses 250Vac 2⁄10–30A

BAF

Specifications
Class: Supplemental
Description: Fast-Acting
Dimensions: 13⁄32” x 1 1⁄2 ”(10.3 x 38.1mm).
• Fiber tube.
• Nickel-plated brass endcaps.

Ratings:
Volts: 250Vac (or less)
Amps: 2⁄10A to 30A
IR: 10kA @ 125Vac (2⁄10-30A); 35A (2⁄10-1A @ 250Vac); 100A (11⁄2-3A @ 250Vac); 200A (4-10A @ 250Vac); 750A (12A- 15A @ 250Vac); 200A (20-30A @ 250Vac)
Agency Information: CE, Std. 248-14, UL 0-15/250V, Guide JDYX, File E19180 CSA Certified, 0-15/250V, Class 1422-01, File 53787.

Features and Benefits
• Low cost supplemental protection of 125V and 250V non-inductive circuits.
• Upgrade with LP-CC product to reduce SKU investment and minimize potential arc-flash hazards. (and minimize potential for misapplying fuse.)

Typical Applications
• General Purpose Circuits
• Lighting Circuit Protection
• Meter Circuits

Catalog Numbers (Amps)

BAF-2/10	BAF-1-1/2	BAF-5	BAF-10
BAF-1/4	BAF-1-8/10	BAF-6	BAF-12
BAF-1/2	BAF-2	BAF-6-1/4	BAF-15
BAF-6/10	BAF-2-1/2	BAF-7	BAF-20
BAF-8/10	BAF-3	BAF-8	BAF-25
BAF-1	BAF-4	BAF-9	BAF-30

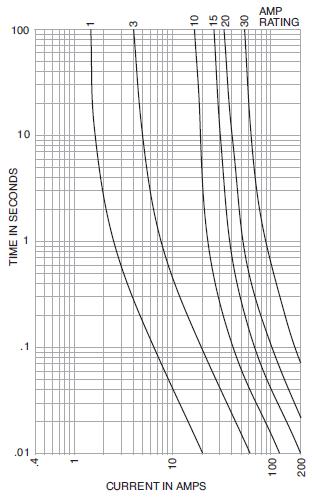

Time-Current Characteristic Curves–Average Melt
