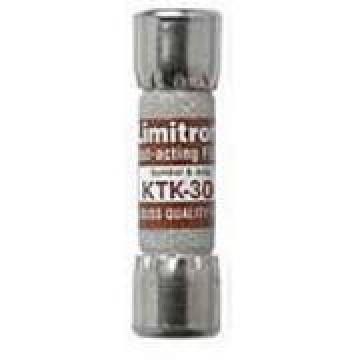

KTK LIMITRON® Fast-Acting Fuses

Catalog Symbol: KTK

• LIMITRON® fast-acting fuse.
• Melamine tube.
• Nickel-plated bronze endcaps.

Class: Supplemental
Description: Fast acting supplementary fuse.
Dimensions: 13⁄32” x 1 1⁄2 ” (10.3 x 38.1mm).

Ratings:
Volts: 600Vac (or less)
Amps: 1⁄10-30A
IR: 100kA RMS Sym. (UL)

Agency Information: UL Listed, STD. 248-14, (Guide #JDYX, File #E19180); CSA Certified: C22.2 NO. 248.14 (File #53787—Class #1422-01) HRC-MISC

Features and Benefits
• Low cost supplemental protection of 600V or less non-inductive circuits.
• Upgrade with LP-CC product to reduce SKU investment and minimize potential arc-flash hazards.

Typical Applications
• Control Circuits
• Lighting Circuit Protection
• Meter Circuits

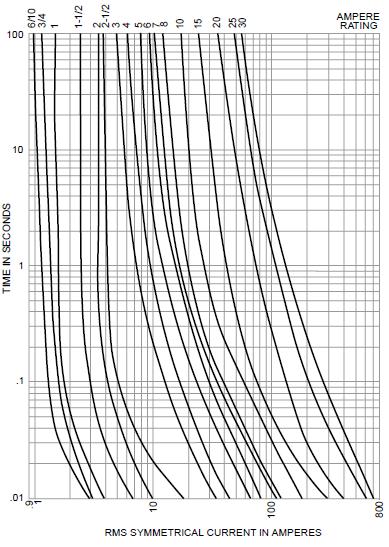

Time-Current Characteristic Curves–Average Melt


Catalog Numbers (Amps)
600Vac - UL Listed and C.S.A.

KTK-1/10	KTK-1-1/4	KTK-7-1/2
KTK-1/8	KTK-1-1/2	KTK-8
KTK-2/10	KTK-2	KTK-9
KTK-1/4	KTK-2-1/2	KTK-10
KTK-3/10	KTK-3	KTK-12
KTK-4/10	KTK-3-1/2	KTK-15
KTK-1/2	KTK-4	KTK-20
KTK-6/10	KTK-5	KTK-25
KTK-3/4	KTK-6	KTK-30
KTK-1	KTK-7

Carton Quantity and Weight

Ampere Ratings	Carton Qty.	Weight*
		Lbs.	Kg.
1/10-30	10	0.18	0.082

*Weight per carton.
