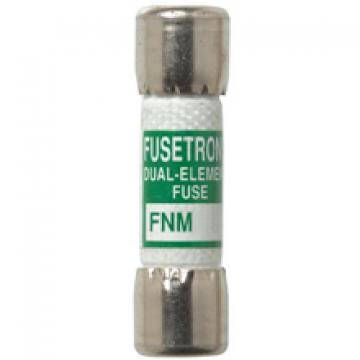

FNM Fusetron® Time-Delay Fuses

FNM

Class: Supplemental
Description: Time-delay supplementary fuse.

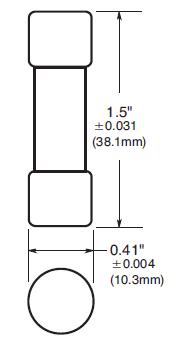

Dimensions: 13⁄32” x 11⁄2” (10.3 x 38.1mm).


Ratings:
Volts: 250Vac (or less)
Amps: 1⁄10-30A
IR: 35A (1⁄10-1A @ 250Vac); 100A (11⁄8-31⁄2A @ 250Vac); 200A (4-10A @ 250Vac); 10kA (1⁄10-10A @ 125Vac); 10kA (12-30A @ 250Vac)

Agency Information: CE, Std. 248-14, UL Listed, 0-30/250Vac; File E19180, Guide JDYX, CSA Certified, 1-30/250Vac; Class 1422-01, File 53787.

Features and Benefits
• Low cost supplemental protection of 125V and 250V inductive circuits.

Typical Applications
• General Purpose Circuits
• Lighting Circuit Protection
• Meter Circuits
• Upgrading to LP-CC product will reduce SKU investment and minimize potential for misapplying fuse.

Catalog Number

FNM-1/10	FNM-1	FNM-2-8/10	FNM-7
FNM-1/8	FNM-1-1/8	FNM-3	FNM-8
FNM-15/100	FNM-1-1/4	FNM-3-2/10	FNM-9
FNM-2/10	FNM-1-4/10	FNM-3-1/2	FNM-10
FNM-1/4	FNM-1-1/2	FNM-4	FNM-12
FNM-3/10	FNM-1-6/10	FNM-4-1/2	FNM-15
FNM-4/10	FNM-1-8/10	FNM-5	FNM-20
FNM-1/2	FNM-2	FNM-5-6/10	FNM-25
FNM-6/10	FNM-2-1/4	FNM-6	FNM-30
FNM-3/4	FNM-2-1/2	FNM-6-1/4

Carton Quantity and Weight

Amp Ratings	Carton Qty	Weight
		Lbs.	Kg.
0-30	10	0.125	0.057

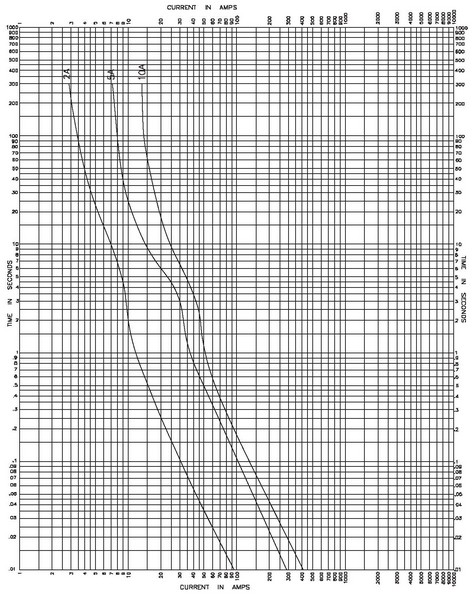

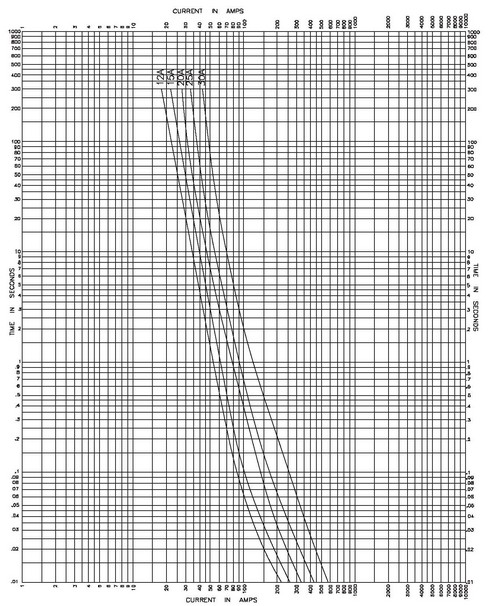

Time-Current Characteristic Curves–Total Clearing
