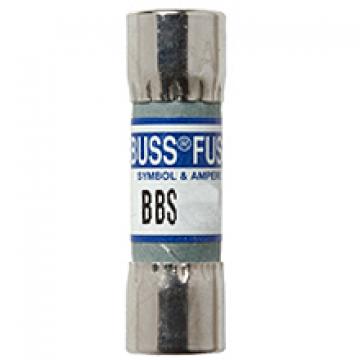

BBS Fast-acting Ferrule Fuses

Description:
Fast-acting supplementary fuse.

Class: Supplemental

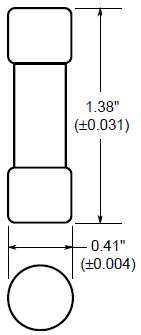

Dimensions: 13⁄32” x 13⁄8” (10.3 x 34.9mm).


Construction: Fiber cartridge.

Ratings:
Volts: 600Vac (1⁄10-5A); 250Vac (6 - 10A); 48Vac (12-30A)
Amps: 1⁄10-30A
IR: 10kA RMS Sym.
Agency Information: CE, Std. 248-14, UL Listed, 0-5A/600V, Guide JDYX, File E19180, CSA Certified, 0-5A/600V, Class 1422-01, File 53787.

Features and Benefits
• Low cost supplemental protection of non-inductive circuits
• Reduced interchangeability with other supplemental fuses minimizes misapplication

Typical Applications
• Control Circuits
• Lighting Ballasts
• Meter Circuits

Catalog Numbers (Amps)

BBS-1/10	BBS-6/10	BBS-1-6/10	BBS-5	BBS-12
BBS-2/10	BBS-3/4	BBS-1-8/10	BBS-6	BBS-15
BBS-1/4	BBS-8/10	BBS-2	BBS-7	BBS-20
BBS-4/10	BBS-1	BBS-3	BBS-8	BBS-25
BBS-1/2	BBS-1-1/2	BBS-4	BBS-10	BBS-30

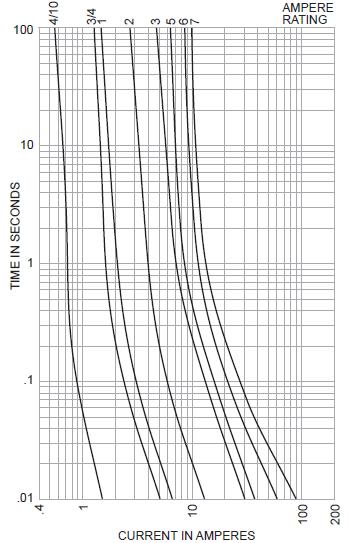

Time-Current Characteristic Curves–Average Melt
