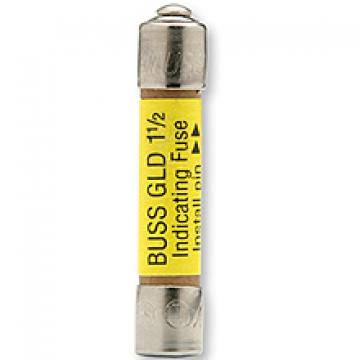

GBA & GLD Fast-acting Pin Indication Fuse

Class: Supplemental

Description:
Fast-acting, pin indication fuse.

Ratings:
Volts: See Agency Info below
Amps: 1⁄2-15A
IR: See Agency Info below
Agency Information: CE, Std. 248- 14, UL Listed, 0-5A/125Vac, 10,000 AIC, Guide JDYX, File E19180, UL Recognized, 6A/125Vac, 1000AIC 8-15A/50Vac/dc, 300 AIC Guide JDYX2, File E19180, CSA Certified: 0-5A/125Vac, 10,000 AIC Class 1422-01, File 53787.

Dimensions:

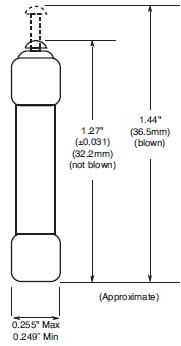

1/4” x 1 1/4” (6.6 x 31.7mm) 3AG.

General Information:
• Use in power electronic circuits in which a fuse opening must be quickly apparent.
• Opening of fuse results in the ejection of end pin.
• Type GLD has an albaloy-plated pin for positive, electrical signal circuit activation.
• Type GBA has a red pin for high visibility.
• The Cooper Bussmann Series 8000 fuse blocks are recommended for visual indication.
• For visual indication use Cooper Bussmann panel-mounted fuseholder HLD (15A maximum)
• Ferrules: Nickel-plated brass endcaps.

Features and Benefits
• Type GBA has a “red” pin indicator providing visual identification of failed circuits, resulting in faster troubleshooting (reduced circuit downtime).
• Type GLD has a plated pin to activate transmitting a electrical signal to indicate the location of opened circuits, resulting in reduced downtime.

Typical Applications
• Control Circuits
• Electronic Circuits

Electrical Ratings (Catalog Symbol and Amps)

GLD-1/2	GLD-1-1/2	GLD-4	GLD-10
GLD-3/4	GLD-2	GLD-5	GLD-12
GLD-1	GLD-3	GLD-6	GLD-15
GBA-1/2	GBA-1-1/2	GBA-4	GBA-10
GBA-3/4	GBA-2	GBA-5	GBA-15
GBA-1	GBA-3	GBA-6

Carton Quantity and Weight

Amp Ratings	Carton Qty.	Weight
		Lbs.	Kg.
1/2 - 15	100	0.86	0.39

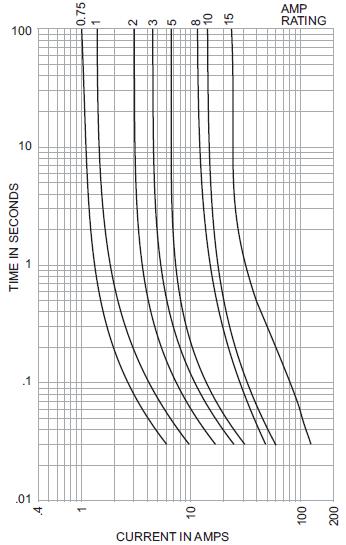

Time-Current Characteristic Curves–Averag e Melt
