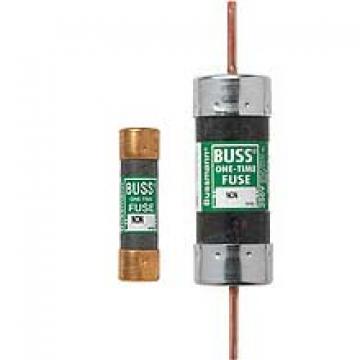

NON and NOS One-Time General Purpose Fuses

NON (250Vac/125Vdc) Class K5 & H
NOS (600Vac) Class K5 & H

Description: General purpose, non-current-limiting fuses.

Ratings:
Volts:
NON: 250Vac; 125Vdc (0-100A)
NOS: 600Vac
Amps: 1/8-600A
IR:
50kA RMS Sym. (NON & NOS Class K5 0-60A)
10kA RMS Sym. (NON & NOS Class H65-600A)
50kA @ 125Vdc (NON Class K5 0-60A)
10kA @ 125Vdc (NON Class H 65-100A)

Agency Information: CE, UL Listed – 250V: Class K5 (0-60A), Std. 248-9, Class H (65-600A), Std. 248-6, (125Vdc: NON 0-100), 600V: Class K5 (0-60A), Std. 248-9, Class H (70-600A), Std. 248-6, Guide JDDZ, File E4273, CSA Certified – 250V: (0-12, 65-600)†, 600V: (0-600), Class 1421-01, File 53787.
† For CSA Certified 15-60A Ratings, see PON Data Sheet 4126

General Information:
• Protect lighting, heating and other circuits not subject to temporary surges and where available short-circuit currents are relatively low.
• ONE-TIME fuses do not have any appreciable degree of timedelay and thus should not be specified in circuits where large transients or motor overloads occur. Use Buss FUSETRON® or LOW-PEAK® dual-element, time-delay fuses.
• For general purpose circuits, size at ampere rating of circuit.
• For motor circuits, size at 300% to 400%.

Features and Benefits
• Original fuse providing circuit protection.

Typical Applications
• Light Duty Circuit Locations

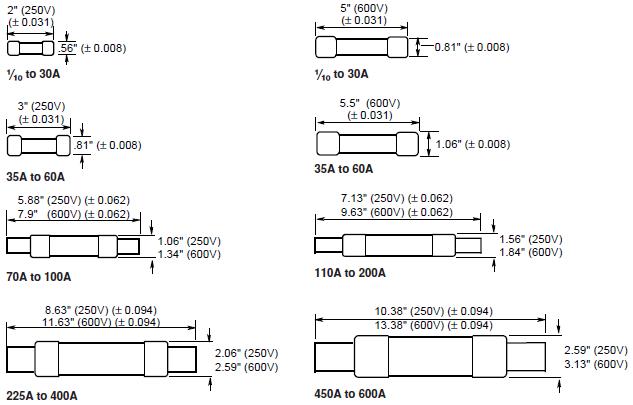

Dimensions



Catalog Numbers - NON ONE-TIME (250Vac)

NON-1/8	NON-3	NON-12	NON-65	NON-200
NON-1/2	NON-3-2/10	NON-15	NON-70	NON-225
NON-3/4	NON-4	NON-20	NON-75	NON-250
NON-8/10	NON-5	NON-25	NON-80	NON-300
NON-1	NON-6	NON-30	NON-90	NON-350
NON-1-1/4	NON-6-1/4	NON-35	NON-100	NON-400
NON-1-1/2	NON-7	NON-40	NON-110	NON-450
NON-1-6/10	NON-8	NON-45	NON-125	NON-500
NON-2	NON-9	NON-50	NON-150	NON-600
NON-2-1/2	NON-10	NON-60	NON-175

Carton Quantity and Weight - NON ONE-TIME (250Vac)

Catalog Number	Carton Qty.	Weight**
		Lbs.	Kg.
NON 1/8-30	10	0.38	0.172
NON 35-60	10	1	0.453
NON 65-100	5	0.79	0.358
NON 110-200	1	0.79	0.358
NON 225-400	1	1.65	0.748
NON 450-600	1	2.76	1.251

**Weight per carton.

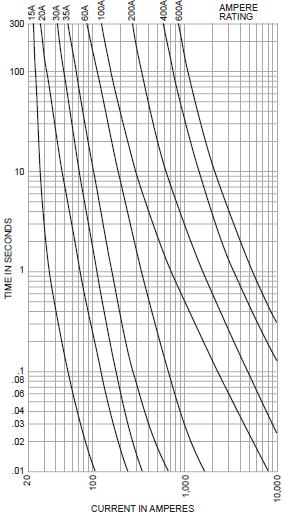

Time-Current Characteristic Curves - Average Melt
NON ONE-TIME (250Vac)

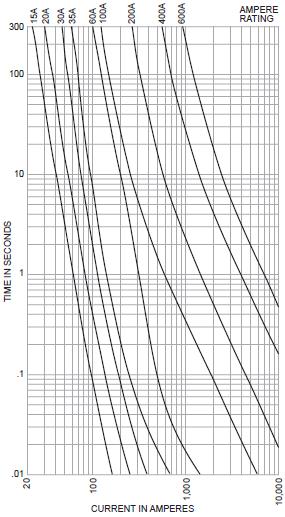

Time-Current Characteristic Curves - Average Melt
NOS ONE-TIME (600Vac)
