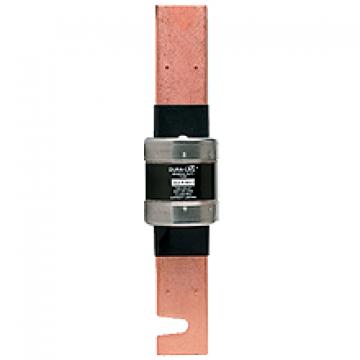

DLS-R (600V) Class RK5 Dura-Lag™ Dual-element Time-delay Fuses

Obsolete

For replacement, please visit:
ECSR Dual-Element Time-Delay Class RK5 Fuses

Description: Dual-element, time-delay fuse – 10 seconds (minimum) at 500% rated amps.

Ratings:
Volts: 600Vac (or less)
Amps: 1-600A
IR: 200kA RMS Sym.

Agency Information:
CE, Std. 248-12, Class RK5, UL Listed, Guide JDDZ, File E4273, CSA Certified, Class 1422-02 File 53787.

Features and Benefits
• Separate overload and short-circuit elements provide time delay for close inductive load sizing, linked with RK5 current limitation.
• 200kA interrupting rating provides high ratings at all circuit locations.

Typical Applications
• Power Panelboards
• Machinery Disconnects

Catalog Numbers (Amps)

DLS-R-1-6⁄10	DLS-R-6-1⁄4	DLS-R-20	DLS-R-70	DLS-R-200
DLS-R-2	DLS-R-7	DLS-R-25	DLS-R-80	DLS-R-225
DLS-R-2-1⁄2	DLS-R-8	DLS-R-30	DLS-R-90	DLS-R-250
DLS-R-3	DLS-R-9	DLS-R-35	DLS-R-100	DLS-R-300
DLS-R-3-1⁄2	DLS-R-10	DLS-R-40	DLS-R-110	DLS-R-350
DLS-R-4	DLS-R-12	DLS-R-45	DLS-R-125	DLS-R-400
DLS-R-5	DLS-R-15	DLS-R-50	DLS-R-150	DLS-R-500
DLS-R-6	DLS-R-17-1⁄2	DLS-R-60	DLS-R-175	DLS-R-600
