Fuse Holders and Blocks

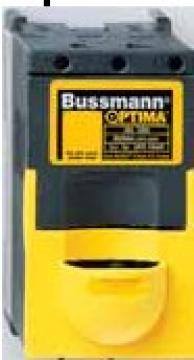

Optima® Fuse Holder Module

3-pole modular fuse holder for 13⁄32” x 1 1⁄2”
(10 x 38mm) fuses.
Recommended Fuse Types
Class CC Midget (Non-Rejection) European
LP-CC KTK C10M
KTK-R FNM C10G
FNQ-R FNQ

Optima® Three-pole Overcurrent Protection Module

3-pole Class CC fuse holder for use with
Class CC fuses (Cooper Bussmann Types
LP-CC, FNQ-R, KTK-R).

Class J Modular Fuse Holders

Ratings:
Volts: — 600Vac/dc (or less)
Amps: — 30A (30A version)
— 60A (60A version)
IP20 finger-safe, 1- to 3-pole Class J fuse
holder with DIN rail or panel mounting.

Class J (Finger-safe) Fuse Holders

Ratings:
Volts: — 600Vac
Amps: — 0-60A (JT(N)60060)
— 0-30A (JT(N)60030)
Indicating and non-indicating finger-safe, DIN
rail mount fuse holders for use with Class J fuses - (Cooper
BussmannR LPJ, JKS).

Global Modular Fuse Holders

CH Series - 8x32, 10x38, 14x51, 22x58, Class CC
Specifications
Cooper Bussmann Fuses
LP-CC, FNQ-R,
KTK-R FNQ, KLM, FNM,
KTK, BAF, FWA,
DCM, C10 Series,
AGU, FWC

Description: The ‘CH’ line of modular fuse holders accommodates many
fuses from around the world, including North American Class-CC, Midget,
Class gR, aR HSF, and IEC Industrial Ferrule (Class gG and aM) in four
physical sizes: 8x32, 10x38, 14x51 and 22x58mm.

SAMI™ Fuse Covers

Indicating and non-indicating fuse covers for
Class J, RK1, RK5, H, K5, CC, G (0-30A) and midget-type
fuses. Indicating feature requires a minimum of 90Vac or
115Vdc to illuminate lamp. One cover required for each pole.
Ratings:
Volts: — Non-Indicating - 0-600Vac/dc
— Indicating - 90 to 600Vac
-115 to 600Vdc
Amps: — 0-100A


Class H(K) and R Fuse Blocks – 250V

H250 Series: 1-, 2- and 3-pole fuse
blocks for use with Class
H fuses.
R250 Series: 1-, 2- and 3-pole fuse
blocks for use with Class
R fuses (Cooper
Bussmann LPN-RK and FRN-R, DLN-R and
KTN-R fuses).
Ratings:
Volts: — 250Vac/dc (H250 & R250 Series)
Amps: — 1⁄10-600A

Class H(K) and R Fuse Blocks – 600V

H600 Series: fuse blocks for use with 1-, 2- and 3-pole
Class H fuses.
R600 Series: fuse blocks for use with 1-, 2- and 3-pole
Class R fuses (Cooper Bussmann LPS-RK, FRS-R, DLS-R
and KTS-R fuses).
Ratings:
Volts: — 600Vac/dc (H600 & R600 Series)
Amps: — 1⁄10-600A

Class J Fuse Blocks

1-, 2- or 3-pole fuse blocks for use with Class
J fuses (Cooper BussmannR LPJ, DFJ and JKS).
Poles: 1 to 3
Ratings:
Volts: — 600Vac/dc
Amps: — 1⁄2-600A


JA60030 Add-a-pole

Adder fuse block to achieve number of poles desired,
for use with Class J fuses (Cooper Bussmann LPJ, DFJ & JKS).
Dimensions: See Dimensions illustrations.
Ratings:
Volts: — 600Vac/dc
Amps: — 0-30A

Class T Fuse Blocks – 300V



T300 (300V) fuse blocks for use with Class T
fuses (Cooper BussmannR JJN).
Dimensions: See Dimensions illustrations.
Poles: 1 to 4
Ratings:
Volts: — 300Vac/dc
Amps: — 1⁄2 - 600A

Class T Fuse Blocks – 600V
T600 (600V) fuse blocks for use with Class T
fuses (Cooper BussmannR JJS).
Dimensions: See Dimensions illustrations.
Poles: 1 to 3
Ratings:
Volts: — 600Vac/dc
Amps: — 1⁄2 - 600A

Add-a-pole Fuse Blocks

1-, 2 and 3-pole fuse
blocks for use with Class CC fuses
(BCA Series use Cooper BussmannR
LP-CC, KTK-R, and FNQ-R), or with
standard 13⁄32" x 1 1⁄2" fuses (BMA Series
use Cooper BussmannR KTK, FNQ,
FNM, BAF, PV and AGU) Both Series
use an "adder block" to form multi-pole
segmented blocks to achieve the
desired number of poles.

Poles: 1 to 3.
Wire Range: #10-#18 Cu only.
Terminals: Screw/quick connect*
or pressure plate/quick connect*.
Ratings:
Volts: — 600Vac/dc
Amps: — 1⁄10-30A

Class CC, Type M and Class G Fuse Blocks
BC Series

Class CC fuse blocks for
use with Class CC fuses (Cooper
Bussmann LP-CC, KTK-R, and FNQ-R).

Poles: 1 to 3
Ratings:
Volts: — 600V
Amps: — 1⁄10-30A

BM Series Type M

Supplementary fuse
blocks for use with any 13⁄32” x 11⁄2” fuses
(Cooper BussmannR KTK, FNQ, FNM,
BAF, PV, and AGU).

Poles: 1 to 3
DIN Rail Adapters: See page 413
for DRA-1 & DRA-2
Ratings:
Volts: — 600Vac/dc
Amps: — 1⁄10-30A

BG & G Series

Class G fuse blocks for use
with Class G fuses (Cooper Bussmann SC).

Poles: 1 to 3
Ratings:
Volts: — 600Vac/dc (0-20A)
— 480Vac/dc (25-60A)
Amps: — 1-60A

Panel Mounted Fuse Holders for 5 x 20mm Fuses
HTC-35M
Ratings:
Volts: — 250Vac
Amps: — 10A UL, 6.3A VDE
Fuse Access: Threaded cap
HTC-55M
Ratings:
Volts: — 250Vac
Amps: — 10A UL, 6.3A VDE
Fuse Carrier: Bayonet type
HTC-40M
Ratings:
Volts: — 250Vac
Amps: — 10A UL, 6.3A VDE
Fuse Access: Screwdriver slot
HTC-70M
Ratings:
Volts: — 250Vac
Amps: — 10A UL, 6.3A VDE
Fuse Carrier: Bayonet type

Panel Mounted Fuse Holders for 1⁄4" x 11⁄4" Fuses

HKP, HKP-L, HKP-W

Specifications
Description: Standard fuse holders.
Dimensions: See Dimensions
illustration.
Ratings:
Volts: — 250V
Amps: — 30A
Catalog Numbers
Catalog Fuse
Numbers Description
HKP —
HKP-L HKP w/ 2250V stand-off barrier
HKP-W HKP w/ drip-proof knob

HKP-BBHH, HKP-HH and HKP-LW-HH

Specifications
Description: Fuse holders with 1⁄4"
quick-connects.
Dimensions: See Dimensions
illustration.
Ratings:
Volts: — 250V
Amps: — 15A
Catalog Numbers
Catalog Fuse
Numbers Description
HKP-BBHH HKP w/ 1⁄4" quick-connects, nut and washer
assembled.
HKP-HH HKP w/ 1⁄4" quick-connect.
HKP-LW-HH HKP w/ drip-proof knob, 2250V stand-off
barrier and 1⁄4" quick-connects.

HKP-OO

Specifications
Description: Snap-lock fuse holders.
Dimensions: See Dimensions
illustration.
Ratings:
Volts: — 250V
Amps: — 30A
Catalog Numbers
Catalog Fuse
Number Description
HKP-OO HKP with snap-lock

In-line Fuse Holders for 1⁄4" x 7⁄8" to 11⁄4" Fuses HFB & HFB-10

Waterproof in-line fuse
holder for 1⁄4" x 11⁄4" fuses.
Dimensions: See Dimensions
illustration.
Construction: Thermoplastic rubber
body with tin-plated, copper contacts.
Ratings:
Volts: — 32V
Amps: — 30A max
Catalog Numbers
Catalog
Numbers Description
HFB* Standard Pack (10-in)
BK/HFB Bulk Pack (100-in)
BK/1A2294 HFB Replacement Contact Clip
1A2294-01 HFB-10** Replacement Contact Clip
*HFB accepts #12 to #18 wire leads (not provided). See
Data Sheet for recommended crimp tools.
**HFB-10 accepts #10 wire leads (not provided).

HHB

Universal in-line fuse
holder for 1⁄4" x 7⁄8", 1" and 11⁄4" fuses.
Construction: Nylon body with tinplated,
copper contacts.
Ratings:
Volts: — 32V
Amps: — 30A max
Flammability Rating: UL 94V2.
Features and Benefits
• HHB Universal in-line fuse holder for
1⁄4" x 7⁄8", 1" and 1 1⁄4" fuses.
Typical Applications
• Supplemental, Low Voltage, Low
Amperage Control Circuits
Catalog Numbers
Holder — without leads* - RoHS compliant
Catalog Numbers Description
HHB-R Standard Pack (10-in)
BK/HHB-R Bulk Pack (100-in)

HRK

Universal in-line fuse
holder for 1⁄4" x 7⁄8", 1" and 11⁄4" fuses.
Construction: Nylon body with tinplated,
copper contacts.
Ratings:
Volts: — 32V
Amps: — 30A max
Flammability Rating: UL 94V2.
Features and Benefits
• HHB Universal in-line fuse holder for
1⁄4" x 7⁄8", 1" and 1 1⁄4" fuses.
Typical Applications
• Supplemental, Low Voltage, Low
Amperage Control Circuits
Catalog Numbers
Holder — without leads* - RoHS compliant
Catalog Numbers Description
HHB-R Standard Pack (10-in)
BK/HHB-R Bulk Pack (100-in)

In-line Fuse Holders

In-line
fuse holders for SFE
and 1⁄4" dia. x various
length fuses.
Dimensions: See
Dimensions
illustration.
Ratings:
Volts: — 32V
Amps: — 20A
Features and Benefits
• HR and HM Universal in-line fuse
holder for SFE and various length 1⁄4"
diameter fuses with #14 lead wires.
Typical Applications
• Supplemental, Low Voltage, Low
Amperage Control Circuits
Catalog Numbers
Catalog Includes Wire Length
Numbers Fuse & Size
HRJ* SFE-20
HRI SFE-14
HRH SFE-9
HRE SFE-71⁄ 19” of #14 2
HRG SFE-6
HRF SFE-4
HMJ** SFE-20
HMI SFE-14
HMH SFE-9
HME SFE-71⁄ 8” of #14 2
HMG SFE-6
HMF SFE-4
* Also available as in-line fuse holder only with lead wire
contacts, HRJ-LESS-Fuse.
** Also available as in-line fuse holder only with lead wire
contacts, HMJ-LESS-Fuse.
HHJ-A For 1⁄4" x 11⁄4" fuse, no wire or fuse
included, accepts #18 - #22 wire.
HHJ-B For 1⁄4" x 11⁄4" fuse, no wire or fuse
included, accepts #12 - #16 wire.
HHI-B For 1⁄4" x 11⁄16" fuse, no wire or fuse
included, accepts #12 - #16 wire.


HFA Series

In-line water-resistent
fuse holders for 1⁄4" x 11⁄4" fuses.
Construction: Phenolic body with
copper crimp contact leads.
Ratings:
Volts: — 250V
Amps: — 20A
Agency Information: CE, UL
Recognized, (Guide IZLT2, File
E14853) UL.
Flammability Rating: UL 94HB.
Features and Benefits
• HFA in-line, water-resistent fuse holder
for 1⁄4" x 11⁄4" fuses.
Typical Applications
• Supplemental, Low Voltage, Low
Amperage Control Circuits
Refer to data sheet for recommend
crimp tools
Catalog Numbers
Catalog
Numbers Terminals
HFA Crimp #12 - #16
HFA-HH* 1⁄4" Quick Connect

Tron™ In-line Fuse Holders

Single-pole,
non-breakaway, in-line fuse
holders for Type SC fuses,
480V (or less).
Ratings:
Volts: — 600V
Amps: — 0-15A
Fuse Size: 13⁄32" x 1.31"
Catalog Number
HEG-AA

HEH Series
Single-pole,
non-breakaway, in-line fuse
holders for Type SC fuses
(Also fuse types BBS & KTQ,
nominal size 13⁄32" x 1 3⁄8").
Ratings:
Volts: — 600V
Amps: — 0-20A
Catalog Numbers
HEH-AA, HEH-BB, HEH-AD

HEC Series
Single-pole,
non-breakaway, in-line fuse
holders for Type SC-25, &
SC-30 fuses, size
13⁄32" x 1 5⁄8".
Ratings:
Volts: — 480V
Amps: — 0-30A
Catalog Numbers
HEC-AA, HEC-RW-RLB-R

HEJ Series
Single-pole,
non-breakaway, in-line fuse
holders for Type SC and Type
HVW fuses, size 13⁄32" x 2 1⁄4".

Ratings:
Volts: — 480V
Amps: — 35-60A Type SC
— 1⁄2-6A Type HVW
Catalog Numbers
HEJ-AA, HEJ-AB, HEJ-AC, HEJ-BB,
HEJ-JJ, HEJ-JK, HEJ-LL, HEJ-LLB,
HEJ-CC, HEJ-DD, HEJ-WW, HEJ-PP,
HEJ-QQ

HEY Series

Double-pole
in-line fuse holders for KTKR
fuses with optional breakaway
receptacle, polarized,
and accepting Class CC
branch circuit fuses (Cooper
BussmannR KTK-R, FNQ-R
& LP-CC; 600V or less,
200,000A IR).
Ratings:
Volts: — 600V
Amps: — 0-30A
Catalog Numbers
HEY-AA, HEY-AB, HEY-AC, HEYAD,
HEY-AE, HEY-AL, HEY-AWDRLC-
A, HEY-AW-DRLC-B, HEYAW-
DRYC, HEY-BB, HEY-JJ

HEX Series
Double-pole inline
fuse holders for 13⁄32" x 1 1⁄2"
fuses (typically fuse types
BAF, FNM, FNQ, and KTK
1⁄10 - 30A).
Ratings:
Volts: — 600V
Amps: — 0-30A
Catalog Numbers
HEX-AA, HEX-AB, HEX-AC, HEX-AD,
HEX-AE, HEX-AW, HEX-AW-DRLC-A,
HEX-AW-DRYC, HEX-AW-RLC-A,
HEX-AW-RYC, HEX-AY, HEX-BB,
HEX-CC, HEX-JJ, HEX-JK, HEX-JWDRYC,
HEX-KK

Panel Mounted Fuse Holders for 5 x 20mm and 1⁄4" x 1 1⁄4" Fuses

Fuse holders with knob-type carriers.
Solder/ 3⁄16" Quick-Connect
1⁄4" Quick-Connect
In-Line Rt. Angle

Panel Mounted Fuse Holders for Indicating Type Fuses HLD

Pin indicating for
1⁄4" x 11⁄4" fuses.
Dimensions: See Dimensions
illustration.
Ratings:
Volts: — 250V
Amps: — 15A
Catalog Numbers
Catalog
Numbers* Terminals
HLD Solder terminals
HLD-HH 1⁄4" quick-connect terminals
*Use w/GBA, GLD Fuses.


HJL

Neon lamp indicating for
1⁄4" x 1" fuses.
Ratings:
Volts: — 250V
Amps: — 15A
Catalog Number
Catalog Lamp Knob
Number* Volts Color Type
HJL 90 to 250 Clear Oct
*Use with AGX or MKB fuses, for panels up to 1⁄8" thick.

HK Series



Neon and incandescent
lamp indicating for 1⁄4" x 11⁄4" fuses
Ratings:
Volts: — 250V
Amps: —15A (HKL, HKL-X)
— 20A (HKR, HKT, HKU, HKX)
Catalog Numbers
Catalog Lamp
Numbers Volts Knob Color/Type
HKL* 90-250 Clear/Oct
HKL-X* 90-250 Clear/FS
HKR** 22-30 Amber/Oct
HKT** 13-22 Amber/Oct
HKU** 4-6 Red/Oct
HKX** 22-33 Amber/FS
* Neon lamp — UL Recognized and CSA Certified.
** Incandescent lamp.

Panel Mounted Fuse Holders for 13⁄32" x 1 5⁄16" to 1 1⁄2" Fuses HPF

 Standard fuse holders
with screw-type knob for 13⁄32" x 15⁄16" to
11⁄2" Fuses.
Flammability Rating: UL 94HB.
Terminals: Combination 1⁄4"
quick-connect/solder terminals.
Catalog Numbers
Catalog Amp
Numbers Ratings Volts Fuse Description
HPF 302 600 1 1⁄2" (38.1mm)
HPF-C 303 6003 1 1⁄2" (38.1mm) clear knob.
HPF-L 5 600 BBS, 13⁄32" x 1 3⁄8" fuses.
HPF-EE 15 600 SC 0-15, 13⁄32" x 1 5⁄16" fuses.
HPF-JJ 20 600 SC 20, 13⁄32" x 1 13⁄32" fuses.
HPF-FF1 302 480 SC 25 & 30, 13⁄32" x 1 5⁄8" fuses.
HPF-RR 302 600 KTK-R, LP-CC & FNQ-R
Class CC fuses.
HPF-WT 302 600 Splash-proof knob. 13⁄32" x 1 1⁄2"
(38.1mm)
1 No CSA Certification
2 20A max when used with quick-connect terminals.
3 HPF-C ratings for CSA-15A, 250V

HPS

 Standard fuse holders
with bayonet-type knob for 13⁄32" x 15⁄16"
to 11⁄2" fuses.
Flammability Rating: UL 94HB.
Terminals: Combination 1⁄4" quickconnect/
solder terminals.
Catalog Numbers
Catalog Amp
Symbol Ratings Volts Fuse Description
HPS 302 3 600 13⁄32" x 1 1⁄2"
HPS-L 5 600 BBS, 13⁄32" x 1 3⁄8" fuses.
HPS-EE* 15 600 SC 0-15, 13⁄32" x 1 5⁄16" fuses.
HPS-JJ* 20 600 SC 20, 13⁄32" x 1 13⁄32" fuses.
HPS-F-EE1 15 600 Sleeve on body, leaded for
13⁄32" x 15⁄16" fuses.
HPS-FF*1 302 480 SC 25 & 30, 13⁄32" x 1 5⁄8" fuses.
HPS-RR*1 302 600 KTK-R, LP-CC, FNQ-R Class
CC fuses.
*-EE, -JJ, -FF and -RR versions are UL Recognized for
applications requiring branch circuit protection.
1 No CSA Certification
2 20A max when used with quick-connect terminals.
3 HPS rated at 250V for CSA

HPG

Standard fuse holders
with bayonet-type knob for 13⁄32" x 11⁄2"
fuses.
Flammability Rating: UL 94V0 - fuse
holder body UL 94HB - Knob.
Catalog Numbers
Catalog Amp
Numbers Ratings Volts Fuse Description
HPG* 301 600 13⁄32" x 1 1⁄2" fuses
HPG-EE* 15 600 SC 0-15, 13⁄32" x 1 5⁄16" fuses.
HPD** 301 600 13⁄32" x 1 1⁄2" fuses
1 20A max when used with quick-connect terminals.
*HPG and HPG-EE has combination 1⁄4" quick-connect/solder
terminals on both side (load) and rear (line) terminals.
**HPD has combination 1⁄4" quick-connect/solder terminal on
side (load) terminal only. Rear (line) terminal is 3⁄16" shorter
than HPG. Rear terminal solder only.

HPM
Standard fuse holder
with screw-type knob for 13⁄32" x 11⁄2"
fuses.
Dimensions: See Dimensions
illustration.
Ratings:
Volts: — 600Vac/dc
Amps: — 30A1
1 20A max when used with quick-connect terminals.
Flammability Rating: UL 94HB.
Catalog Numbers
Catalog
Numbers Description
HPM 1⁄4" quick-connect/solder
HPM-D Splash-resistant knob2
2 HPM-D has 1⁄4" quick-connect/solder terminal on rear (load)
terminal only. The side (line) terminal is 1⁄4" quickconnect
only.

HPC-D
Fuse holder with
screw-type knob for 13⁄32" x 11⁄2" fuses.
Supplied with O-ring and panel gasket.
Ratings:
Volts: — 600Vac/dc
Amps: — 30A1
1 20A max when used with quick-connect terminals.
Agency Information: CE, UL
Recognized, Guide IZLT2, File E14853.
Flammability Rating: UL 94HB.
Catalog Numbers
Catalog
Number Description
HPC-D Mount in panels up to 1⁄4" thick.

Blocks for 1⁄4" x 1 1⁄4" Fuses
Series 8000
Single-Pole Fuse Blocks
Bolt-in and snap-in mounting for 1⁄4" x 11⁄4"
fuses.
Ratings:
Volts: — 300V
Amps: — 25A
Catalog Numbers
Bolt-in Mounting
Basic
Catalog Agency Poles
Numbers Series Terminal Angle Maximums (Suffix)
S-8001- 8000 Solder 0° UL 25A 1 - 12
S-8002- 40° CSA 21A
S-8101- 8100 3⁄16" Quick 0° UL 20A
S-8102- Connect 40° CSA 13A
S-8201- 8200 1⁄4" Quick 0° UL 20A
S-8202- Connect 40° CSA 16A
S-8203- Side
S-8301- 8300 Screw — UL 30A
CSA 25A
Snap-in Mounting
Catalog Agency Poles
Numbers Series Terminal Angle Maximums (Suffix)
S-8001-1-SNP 8000 Solder 0° UL 25A Available
S-8002-1-SNP 40° CSA 21A only in
S-8101-1-SNP 8100 3⁄16" Quick 0° UL 20A single
S-8102-1-SNP Connect 40° CSA 13A pole
S-8201-1-SNP 8200 1⁄4" Quick 0° UL 20A
S-8203-1-SNP Connect Side CSA 16A

Rail Mount Fuse Blocks and Holders

Specifications
Description: Fuse holding rail
mount terminal block.
Circuit Jumper: JF1,
2 circuits
Fuse Size: 13⁄32" X 11⁄2"*
(KTK, FNQ).
Poles: 1
Wire Range: AWG #8-22 Cu.
Ratings:
Volts: — 600V
Amps: — 30A
Mounting Options: 35mm DIN rail, C-rail
Fuse Pullers: • PF1 (standard)
• neon or incandescent bulb
*LPF1 (lighted neon or incandescent bulb).
Catalog Numbers
Catalog
Number Color
NDNF1-WH White
Fuse Pullers (Optional): PF1
Lighted neon or incandescent lamp:
Catalog
Numbers Voltage
LPF1-24 24
LPF1-120 120
LPF1-120-C 120
LPF1-220 220
LPF1-440 440

NDNLFD1-WH
Rail mount
fuse holder.
Circuit Jumper: JF1,
2 circuits.
Fuse Size: 1⁄4" X 11⁄4"
(Cooper Bussmann AGC,
MDL or equivalent).
Poles: 1
Wire Range: AWG #8-22 Cu.
Ratings:
Volts: — 600V
Amps: — 30A (NDND1 non-fused)
— 15A (NDNFD1, 600V/CSA, fused)
— 15A (NDNLFD1*fused, indicating)
*WH24 - 24V White, WH-90Vdc-600Vdc, 115Vac-600Vac White
Agency Information: CE, UL E62622; CSA LR15364.
Mounting Options: 35mm DIN rail, C-rail
Marking Tape: MT12-1-2
Catalog Numbers
Catalog
Number Color Indicator
NDNFD1-WH White NO
NDNLFD1-WH White 90Vdc-600Vdc
115Vac-600Vac
NDNLFD1-WH 24 White 24V





: del.icio.us | Digg
