NEMA Boxes Sealed Dual-Compartment Enclosure

Font size:

The Sealed Dual-Compartment Enclosure has a Separate compartment for housing terminals, power supplies, batteries or other equipment not requiring frequent access. Body made of high impact ABS. Cover made of blue tinted Polycarbonate (UL 94-HB). Box available in two styles: With screw-on cover (DCS prefix) or hinged cover (DCH prefix) designed for frequent access. both carry IP65 Rating Both compartment sealed with durable and oil resistant Silicone sponge gasket .

Design Features

Body made of high impact ABS
Cover made of blue tinted Polycarbonate (UL 94-HB).
( Higher flammability rated material available on special request )
Separate compartment for housing terminals, power supplies, batteries or other equipment not requiring frequent access

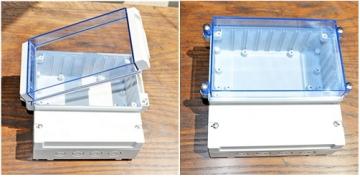

Box available in two styles:
- * With screw-on cover (DCS prefix) IP65 Rating
- * Hinged cover (DCH prefix) IP65 Rating designed for quick frequent access (left or right side hinge)
Easy to remove knockouts provided on bottom side to accommodate conduit fittings or cable glands
Both compartment sealed with durable and oil resistant Silicone sponge gasket
Built-in DIN-Rail mounting clips
PCB guides provided in upper compartment

Sealed Dual-Compartment enclosure
Catalog Number	Catalog Number	Height (Inches)			Width (Inches)			Depth (Inches)			Shipping Weight (lbs.)
Catalog Number	Catalog Number	External	Internal (PCB box)	Internal (Terminals box)	External	Internal (PCB box)	Internal (Terminals box)	External	Internal (PCB box)	Internal (Terminals box)	Shipping Weight (lbs.)
DCH-11920	DCS-11900	6.34	3.79	1.9	6.54	6.14	5.39	3.66	3.47	2.11	0.3
DCH-11921	DCS-11901	6.34	3.79	1.9	6.54	6.14	5.39	4.76	4.57	2.11	0.3
DCH-11922	DCS-11902	7.28	4.54	2.09	8.39	7.99	7.24	4.11	3.91	2.11	0.4
DCH-11923	DCS-11903	8.54	5.8	2.09	10.08	9.72	8.96	5.22	4.99	2.5	0.6
DCH-11924	DCS-11904	11.06	7.34	3.07	11.65	11.26	10.49	6.22	5.98	3.33	0.7
