NEMA Boxes UL/NEMA/IEC NBC Series
Font size:
Most of these gasketed enclosures have been tested and approved to UL508-4x specifications, with a few being approved to UL50-4x. All enclosures meet NEMA 1, 4, 4x and IEC529-IP66 requirements, which allows them to be used in many wet, dirty and/or corrosive environments.
Design Features
- Designed to IP66 of IEC 529 and NEMA 1, 4 and 4X specifications.
- ABS/PC blended plastic enclosures have UL94-5VA flammability rating. Suggested service temperature range -40°C to +85°C.
- PBT/PC blended plastic enclosures have UL94-5VA flammability rating. Suggested service temperature range -40°C to +75°C.
- Outdoor version is designed to provide UV protection.
| Catalog Number | NBC Series | |||||||||||
|
Indoor Version (ABS/PC) |
Outdoor Version (PBT/PC) |

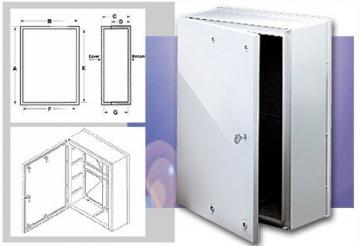

Nominal Dimensions |
A |
B |
C |
D |
E |
F |
G |
Wgt. Lbs. |
||
|
Solid Door |
Solid Door |
A |
B |
C |
||||||||
| NBC-10352 | NBC-10372 | 800mm | 600mm | 280mm | 32.05" | 24.18" | 11.00" | 10.02" | 30.67" | 22.82" | 10.60" | 27.5 |
:
