NEMA Boxes PBB - Heavy Duty Plastic push button box

Font size:

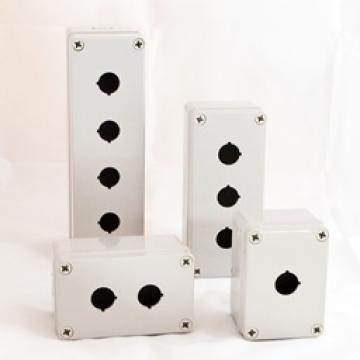

This heavy duty,IP67 and UL type 4X and type 6 listed, impact resistant, Gray Polycarbonate (PC) NEMA plastic box designed for 22mm or 30mm push button. An excellent choice for a metallic box substitute, sizes designed to fit 1 to 4 push buttons.

Design Features

Suited for 22mm and 30mm push button
Four way keyed
Body Made of Gray Polycarbonate (PC) resin 10% glass fiber filled
Cover made of Gray Polycarbonate (PC)
High impact resistance
IP-67 TUV rating to keep out dust and water in extreme conditions.
UL508 / NEMA type 4X and type 6 listed #E343339.
CE Low Voltage directive 2006/95/EC Compliant
RoHs compliant
Non-chlorinated & non-brominated flame retardant With UL-94 V0 rating.
Suitable for outdoor use with respect to exposure to Ultraviolet Light, Water Exposure and Immersion in accordance with UL 746C.
Nonmetallic captive screws without the risk of stripping.
Good chemical resistance
Continuous gasket

PLASTIC PUSH BUTTON NEMA BOX HEAVY DUTY
Catalog Number	Drawings	Holes Size x Qty	L (in)	W (in)	D (in)	Weight (lb.)	External mounting bracket#
PBB-11815-1		0.89” (22.5mm) x1	4.331	3.150	3.346	0.13	Steel mounting bracket Kit NBX10922 Plastic mounting bracket Kit PIX-4117
PBB-11817-2		0.89” (22.5mm) x2	5.118	3.150	3.346	0.13
PBB-11819-3		0.89” (22.5mm) x3	7.087	3.150	3.346	0.15
PBB-11821-4		0.89” (22.5mm) x4	9.843	3.150	3.346	0.19
PBB-11831-1		1.22” (31mm) x1	4.331	3.150	3.346	0.13
PBB-11833-2		1.22” (31mm) x2	5.118	3.150	3.346	0.13
PBB-11835-3		1.22” (31mm) x3	7.087	3.150	3.346	0.15
PBB-11837-4		1.22” (31mm) x4	9.843	3.150	3.346	0.19
