Distributors for
WAVETEK Clamp-On Multimeters

WaveTek Logo

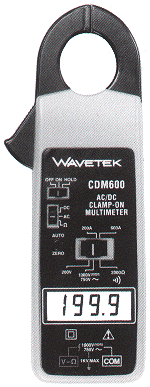

Model CDM600 Pic
Clamp-On Style Multimeters
3 1/2 Digit Display,





FEATURES

CDM600


Using advanced Hall-effect technology, the CDM600 accurately measures AC and DC current without disturbing the test circuit. This digital clamp-on meter has two current ranges, the lowest range having 100mA resolution.

The CDM600 also measures AC voltage to 750V, DC voltage to 1000V, and resistance to 2000 Ohms and has a continuity beeper and a Data Hold switch to freeze the measurement value on the display.

The CDM600 has a 3 1/2 digit liquid crystal display that indicates measurement polarity and a low battery symbol when it is time to replace the battery.

Model CDM600 comes complete with battery, test leads, rugged carrying case, and an Operator's Manual.

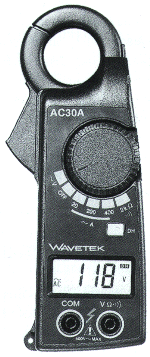

Model AC30A Pic
AC30A

AC Voltage and Current Measurements without Disrupting the Circuit
Compact Design

The AC30A is a compact, clamp-on digital multimeter that measures AC current to 400A without disturbing the circuit. Three current ranges allow the lowest range to display 10mA resolution results.

The AC30A also measures AC voltage to 600V and resistance to 2000 Ohms and has a continuity beeper and a Data Hold switch.

The AC30A has a 31/2 digit liquid crystal display that indicates the unit annunciators, the function setting, measurement polarity, and a low battery svmbol. If accidentally left on, the meter automatically powers off after five minutes to help conserve battery life.

The AC30A comes complete with batteries, test leads, leather carrying case (LC14A) and an Operator's Manual.



© 1997 Wavetek
