The DM5XL, DM10XL, DM15XL, and DM16XL meters have the following features:

XL Series
Wavetek XL Series
3 1/2 Digit,
Large Character Display,
Small Size,
Low Cost DMMs

FEATURES

Large LCD Digits. The largest in their class for easy viewing. The 17mm (.67in) high numerals allow you to easily read your measurement values from a distance.

Incorrect Input Warning. A11 four meters have an incorrect input warning that indicates a test lead is plugged into a current jack but the Function/Range switch is not set to make a current measurement. This is a safety feature to warn the user of possible misuse of the meter.

Safety Test Leads. Safety test leads have their probe tips shrouded with insulation to expose only 3.5mm of metal for probing. This allows you to safely make measurements in those dense component areas without causing shorts with long exposed test lead tips.


Each model has a distinctive set of additional features.



XL Series Pic
DM2:







XL Series Pic

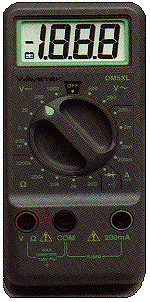

DM5XL: Full-function, full-performance digital multimeter, the DM5XL offers a high speed continuity beeper, fused DC current to 200mA, DC voltage to 100OV, AC voltage to 500V, resistance to 2M ohms and diode testing.




XL Series Pic
DM10XL: Full-function, full-performance digital multimeter that offers the Safety Tester ® feature. The Safety Tester ® detects and displays the presence of particular AC or DC voltage (positive or negative) levels through a series of LEDS. The Safety Tester ® is useful in low-light situations when it is necessary to confirm the existence of a voltage. This feature does not use the meter's internal battery, so you can always detect live voltage levels even if your DMM battery is dead. The DM10XL also has a high-speed continuity beeper, fused DC current to 10A, DC voltage to 1000V, AC voltage to 750V, resistance to 20M ohms and diode testing.

XL Series Pic
DM15XL: Full-function, full-performance digital multimeter that offers a Logic Tester feature. It detects and displays the presence of TTL pulses up to 20MHz. The DM15XL also has a high-speed continuity beeper, fused AC and DC current to 10A, DC voltage to 1000V, AC voltage to 75V, wide resistance range to 2000M ohms and diode testing.


XL Series Pic
DM16XL: The most functions, eleven (11) in all, in our XL line. When you want the most of features in the smallest of packages, select the DM16XL. In addition to Volts, Ohms, and Amps, this meter includes capacitance, transistor, logic test, frequency counter to 15 MHz, diode test, and continuity test. A full-function DMM and Component Tester in one. The DM16XL also includes a technician preferred "Data Hold" button.


XL Series Pic
DM30XL:




XL Series Pic
DM35XL:




There's A Wavetek Test Tool Right For You.

Display/Resolution:               Basic Accuracy:
DM2     1999 cts                  DM2     0.8%
DM5XL   1999 cts                  DM5XL   0.8%
DM10XL  1999 cts                  DM10XL  0.7%
DM15XL  1999 cts                  DM15XL  0.5%
DM16XL  1999 cts                  DM16XL  0.8%
DM30XL  3200 cts*                 DM30XL  0.5%
DM35XL  3200 cts*                 DM35XL  0.5%
   * + bargraph



DC Voltage Ranges/Max Input:      AC Voltage Ranges/Max Input
DM2    5/1000                     DM2    2/500
DM5XL  5/1000                     DM5XL  2/500
DM10XL 5/1000                     DM10XL 5/750
DM15XL 5/1000                     DM15XL 5/750
DM16XL 5/600                      DM16XL 5/600
DM30XL 5/600                      DM30XL 4/600
DM35XL 5/600                      DM35XL 4/600



DC Current Ranges/Max Input:      AC Current Ranges/Max Input
DM2    4/200mA                    DM2    -
DM5XL  4/200mA                    DM5XL  -
DM10XL 5/10A                      DM10XL -
DM15XL 5/10A                      DM15XL 5/10A
DM16XL 3/10A                      DM16XL 3/10A
DM30XL 5/10A                      DM30XL 5/10A
DM35XL 5/10A                      DM35XL 5/10A



Resistance Ranges/Max Input:      Capacitance Ranges/Max Input
DM2    5/2M                       DM2    -
DM5XL  5/2M                       DM5XL  -
DM10XL 6/20M                      DM10XL -
DM15XL 7/2000M                    DM15XL -
DM16XL 6/20M                      DM16XL 5/20uF
DM30XL 6/30M                      DM30XL -
DM35XL 6/30M                      DM35XL 4/32uF



Frequency Counter    Transistor hFE     Logic Test
DM2    -             DM2    -           DM2    -
DM5XL  -             DM5XL  -           DM5XL  -
DM10XL -             DM10XL -           DM10XL -
DM15XL -             DM15XL -           DM15XL Y
DM16XL to 15MHz      DM16XL Y           DM16XL Y
DM30XL -             DM30XL -           DM30XL -
DM35XL -             DM35XL -           DM35XL -



Diode Test           Continuity Beeper  Safety Tester
DM2    Y             DM2    -           DM2    -
DM5XL  Y             DM5XL  Y           DM5XL  -
DM10XL Y             DM10XL Y           DM10XL Y
DM15XL Y             DM15XL Y           DM15XL -
DM16XL Y             DM16XL Y           DM16XL -
DM30XL Y             DM30XL Y           DM30XL -
DM30XL Y             DM35XL Y           DM35XL -



Input Warning:       Auto-off           Data Hold:
DM2    -             DM2    -           DM2    -
DM5XL  Y             DM5XL  -           DM5XL  -
DM10XL Y             DM10XL -           DM10XL -
DM15XL Y             DM15XL -           DM15XL -
DM16XL Y             DM16XL -           DM16XL Y
DM30XL Y             DM30XL Y           DM30XL Y
DM30XL Y             DM35XL Y           DM35XL Y


CR50
Display            1999 cts
Capacitance        200pF to 20OuF
Resistance         20Ohm to 20MOhm
Diode Test         Y
Continuity Beeper  Y
Zero Adjust        -
Capacitance        Y
Resistance         Y
Accuracy           0.5%
