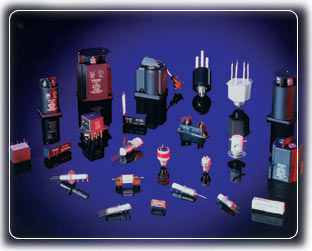

since 1964, kilovac products
have been synonymous with high voltage switching. kilovac pioneered
the development of vacuum and pressurized high voltage relays
and contactors. there are a number of significant advantages to
using kilovac relays including:
- small size and weight for given power rating.
- low and stable contact resistance over relay life.
- ability to interrupt dc loads.
- high resistance to shock, vibration and temperature extremes.
- fast operating times.
- "bounceless" operation in many applications.
- usable in rf devices
small, lightweight relays are built to exacting
criteria. kilovac relays are designed and manufactured to rigorous
in-house requirements in addition to various industry standards.
these standards include:
- iso 9001 registered facility
- qs-9000 registered facility
- mil-i-45208
- mil-r-83725
- mil-r-6106
- sae ard 50031
|
 |
| KILOVAC PRODUCT |
| series |
description |
price |
| aerospace, ground power
and industrial high performance contactors |
| cap200 |
dc contactor, spst-no, 500a, 12-900vdc |
|
| ap150 |
dc contactor, 150a |
|
| ap350 |
dc contactor, 350a |
|
| ap50 |
dc contactor, 50a |
|
| ap90 |
dc contactor, 90a |
|
| high voltage relays |
| ev200 |
12-900vdc, 200/250a make & break load switching |
|
| ev250-1a & 1b |
28-1800vdc, 400a, make & break load switching |
|
| ev250-2a & 2b |
28-1800vdc, 400a, make & break load switching |
|
| ev250-5a |
28-1800vdc, 400a, make & break load switching |
|
| ev4-1a |
28-1800vdc, 400a, make only |
|
| ev500 |
28-1800vdc, 600a, make & break load switching |
|
| h-14 |
12kv, make & break load switching, dpdt |
|
| h-16 |
12kv, make & break load switching, dpdt |
|
| h-17 |
20/25kv, special make & break load switching,
spdt |
|
| h-18 |
8.0kv, make & break load switching, spdt |
|
| h-19 |
20/25kv, special make & break load switching,
dpdt |
|
| h-23 |
30kv, special make & break load switching,
spst-nc |
|
| h-24 |
30kv, special make & break load switching,
spst-no |
|
| h-25 |
50kv, special make & break load switching,
spdt |
|
| h-26 |
15kv, make & break load switching, 4pdt |
|
| hc-1 |
3.5kv, no load switching, spdt |
|
| hc-2 |
8.0kv, no load switching, spdt |
|
| hc-3 |
3.5kv, make & break load switching, spdt |
|
| hc-4 |
8.0kv, make & break load switching, spdt |
|
| hc-5 |
3.5kv, make only switching, spdt |
|
| hc-6 |
8.0kv, make only switching, spdt |
|
| k40p |
5.0kv, make & break load switching, spst-latching |
|
| k41a |
5.0kv, make & break load switching, spst-no |
|
| k41b |
5.0kv, make & break load switching, spst-nc |
|
| k41c |
5.0kv, make & break load switching, spdt |
|
| k41p |
5.0kv, make & break load switching, spst-latching |
|
| k41r |
5.0kv, make & break load switching, spdt-latching |
|
| k43a |
10kv, make & break load switching, spst-no |
|
| k43b |
10kv, make & break load switching, spst-nc |
|
| k43c |
10kv, make & break load switching, spdt |
|
| k43p |
10kv, make & break load switching, spst-latch |
|
| k43r |
10kv, make & break load switching, spdt-latch |
|
| k44p |
8.0kv, make & break load switching, spst-latching |
|
| k45c |
2.0kv, make & break load switching, spdt |
|
| k47a |
8.0kv, make & break load switching, spst-no |
|
| k47b |
8.0kv, make & break load switching, spst-nc |
|
| k61a |
35kv, make only load switching, spst-no |
|
| k61b |
35kv, make only load switching, spst-nc |
|
| k61c |
35kv, make only load switching, spdt |
|
| k62a |
25kv, special make & break load switching,
spst-no |
|
| k62b |
25kv, special make & break load switching,
spst-nc |
|
| k62c |
25kv, special make & break load switching,
spdt |
|
| k64c |
50kv, make only load switching, spdt |
|
| k70a |
70kv, make only load switching, spst-no |
|
| k70b |
70kv, make only load switching, spst-nc |
|
| k70c |
70kv, make only load switching, spdt |
|
| k81a |
10kv, make & break load switching, spst-no |
|
| k81b |
10kv, make & break load switching, spst-nc |
|
| k81c |
10kv, make & break load switching, spdt |
|
| kc-11 |
15kv, no load switching, spdt |
|
| kc-12 |
15kv, make & break load switching, spdt |
|
| kc-14 |
15kv, make & break load switching, spdt |
|
| kc-15 |
15kv, make only load switching, spdt |
|
| kc-16 |
15kv, make only load switching, spdt |
|
| kc-18 |
15kv, make & break load switching, spdt |
|
| kc-2 |
15kv, no load switching, spdt |
|
| kc-20 |
25kv, no load switching, spst-no |
|
| kc-22 |
25kv, special make & break load switching,
spst-no |
|
| kc-28 |
25kv, make only load switching, spst-no |
|
| kc-30 |
25kv, no load switching, spst-nc |
|
| kc-32 |
25kv, special make & break load switching,
spst-nc |
|
| kc-38 |
25kv, make only load switching, spst-nc |
|
| kc-8 |
15kv, make & break load switching, spdt |
|
| km-13 |
7.5kv, make only load switching, dpdt |
|
| km-17 |
7.5kv, make only load switching, dpdt |
|
| pd10 |
28-1800vdc, 10-30a, make & break load switching |
|
| pd150x |
28-1800vdc, 150a, make & break load switching |
|
| pd350x |
28-1800vdc, 500a, make & break load switching |
|
| pd5 |
28-1800vdc, 5a, make & break load switching |
|
| pd90x |
28-1800vdc, 90a, make & break load switching |
|
| s02dna |
3.0kv, no load switching, spst-no |
|
| s05lta |
10kv, make & break load switching, spst-no |
|
| s05ltb |
10kv, make & break load switching, spst-nc |
|
| s05mta |
15kv, make & break load switching, spst-no |
|
| s06cba |
2.0kv, no load switching, spst-no |
|
| s06fna |
5.0kv, no load switching, spst-no |
|
| s06hba |
9.0kv, no load switching, spst-no |
|
| s06jnb |
8.0kv, no load switching, spst-nc |
|
|
