BUD

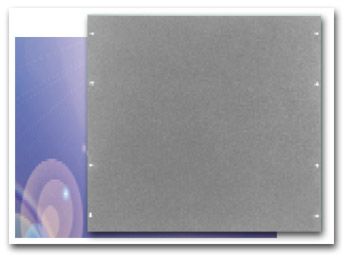

Surface Shield Panels, PA, and PS Series
Accessories - Panels |
Design FeaturesAvailable in 11 gauge steel and .12" aluminum Alloy. Steel, standard aluminum and hard aluminum (6061-T6) panels come in 19" widths. Standard .12" aluminum panels also available in 24" widths. |
Aluminum Panels
| 24" Panel 0.12" Thick | 19" Panel 0.12" Thick | Contact us | ||||
| Catalog No. | Height | Weight Lbs. | Catalog No. | Height | Weight Lbs. | |
| PA-2401 | 1.75" | .50 | PA-1131 | 1.75" | .37 | |
| PA-2402 | 3.50" | 1.00 | PA-1132 | 3.50" | .75 | |
| PA-2403 | 5.25" | 1.50 | PA-1133 | 5.25" | 1.12 | |
| PA-2404 | 7.00" | 2.25 | PA-1134 | 7.00" | 1.75 | |
| PA-2405 | 8.75" | 2.50 | PA-1135 | 8.75" | 2.00 | |
| PA-2406 | 10.50" | 3.00 | PA-1136 | 10.50" | 2.50 | |
| PA-2407 | 12.25" | 3.25 | PA-1137 | 12.25" | 2.75 | |
| PA-2408 | 14.00" | 3.50 | PA-1138 | 14.00" | 3.25 | |
| PA-2409 | 15.75" | 4.00 | PA-1139 | 15.75" | 3.62 | |
| PA-2410 | 17.50" | 4.75 | PA-1140 | 17.50" | 4.00 | |
| PA-2411 | 19.25" | 5.25 | PA-1141 | 19.25" | 4.25 | |
| PA-2412 | 21.00" | 5.50 | PA-1142 | 21.00" | 5.00 | |
Aluminum and Steel Panels
| 19" Steel 11 GA. | 19" Aluminum 0.12" Thick | Contact us | ||||
| Catalog No. | Height | Weight Lbs. | Catalog No. | Height | Weight Lbs. | |
| PS-1250 | 1.75" | 1.25 | 101 | 1.75" | .37 | |
| PS-1251 | 3.50" | 2.25 | 102 | 3.50" | .75 | |
| PS-1252 | 5.25" | 3.25 | 103 | 5.25" | 1.12 | |
| PS-1253 | 7.00" | 4.50 | 104 | 7.00 | 1.75 | |
| PS-1254 | 8.75" | 6.00 | 105 | 8.75" | 2.00 | |
| PS-1255 | 10.50" | 7.00 | 106 | 10.50" | 2.50 | |
| PS-1256 | 12.25" | 8.25 | 107 | 12.25" | 2.75 | |
| PS-1257 | 14.00" | 9.50 | 108 | 14.00" | 3.25 | |
| PS-1258 | 15.75" | 10.75 | 109 | 15.75" | 3.62 | |
| PS-1259 | 17.50" | 11.75 | 110 | 17.50" | 4.00 | |
| PS-1260 | 19.25" | 13.00 | 111 | 19.25" | 4.25 | |
| PS-1261 | 21.00" | 14.25 | 112 | 21.00" | 5.00 | |
