UtiliBox Style A
Bud's UtiliBox is the ultimate value in plastic utility boxes. Now available in a variety of styles and sizes.
Design Features:

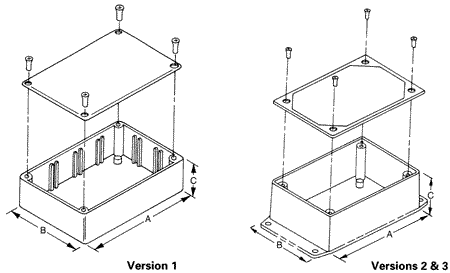

- Available in three versions:
- Version 1: Smooth finish, vertical card guides, optional attached mounting bracket.
- Version 2: Textured finish, optional molded-in mounting bracket.
- Version 3: Textured finish, .015" recessed area in lid, optional molded-in mounting bracket.
- ABS Plastic with flammability rating of 94V-O at .080" thickness and continuous use temperature of 70 degrees C.
- Comes with close fitting interlocking lid and assembly hardare.
Finish:
- Black.
- Special colors are available on request.
| Version |
Catalog Number |
A |
B |
C |
Recess |
Weight ozs |
| 1 |
CU-281 |
4.6" |
3.1" |
1.7" |
no |
4.8 |
| CU-282 |
4.6" |
4.6" |
2.2" |
no |
6.8 |
| CU-283 |
6.1" |
4.6" |
2.2" |
no |
8.8 |
| CU-284 |
7.6" |
4.4" |
2.2" |
no |
10.8 |
| 2 |
CU-3281 |
4.6" |
3.1" |
1.7" |
no |
4.8 |
| CU-3282 |
4.6" |
4.6" |
2.2" |
no |
6.8 |
| CU-3283 |
6.1" |
4.6" |
2.2" |
no |
8.8 |
| CU-3284 |
7.6" |
4.4" |
2.7" |
no |
10.8 |
| 3 |
CUR-3281 |
4.6" |
3.1" |
1.7" |
Yes |
4.8 |
| CUR-3282 |
4.6" |
4.6" |
2.2" |
Yes |
6.8 |
| CUR-3283 |
6.1" |
4.6" |
2.2" |
Yes |
8.8 |
| CUR-3284 |
7.6" |
4.4" |
2.7" |
Yes |
10.8 |
Dimensions are +/- .010"
To order with mounting bracket, add suffix -MB to catalog number and .5 oz. to weight. |
|
