Bud Small Metal Enclosures

TR Series

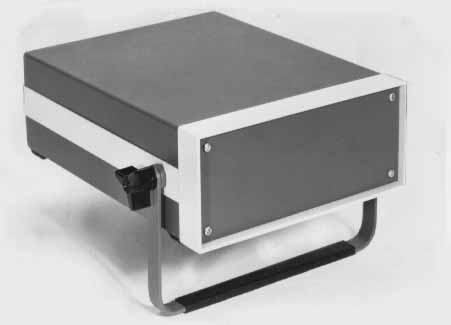

TR-6100 TR Series With the TR, you will give your instrumentation a look that sets it far apart from the conventional. Its styling and versatility makes the TR ideal for your application whether it be a portable enclosure, a desk top instrument case or in a system.

Design Features:
  • Top and bottom: .050" aluminum.
  • Front panel: .090" aluminum.
  • Extruded aluminum frame.
  • Corner gussets for added strength.
  • Carrying handle may be used as tilting bail.
  • Front panel, self-adhesive rubber feet and handle/bail included.


Bonus Features:
  • Since chassis is reversable, two configurations are possible with one unit.
  • Top and bottom easily removed for access to dust-free interior.
  • Will accommodate an accessory chassis or 1/16" thick PC boards.


Finish:
  • Royal Blue Texture (RB) body with White frame.

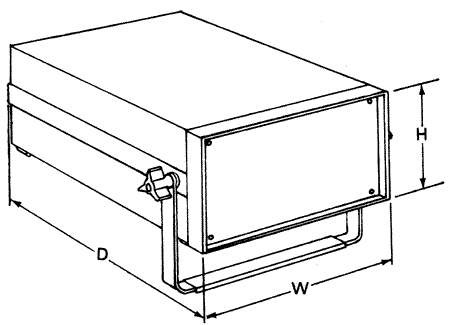

TR-6100 Drawing

Catalog Number Height Width Depth Panel Space Weight lbs
TR-6100 3.5" 8-5/16" 10.75" 3.25" x 8-3/64" 4.5
TR-6101 5.25" 8-5/16" 13.25" 5" x 8-3/64" 5.5
TR-6102 7" 11-1/16" 13.25" 6.75" x 10-53/64" 7
TR-6103 8" 12" 18.75" 7.75" x 11-3/64" 9.5
