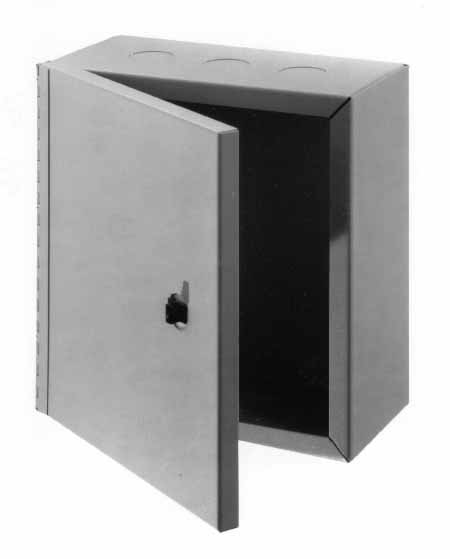

Small Wall Mount Box
Design Features:
- All steel construction with hinged front door.
- Slots on rear surface allow boxes to be easily mounted to a wall, panel, or post.
- Equipment mounting panels and panel mounting brackets available as optional accessories.
Finish:

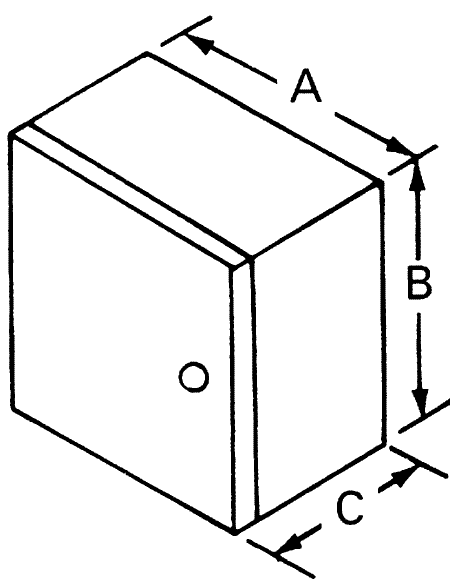

| Catalog Number |
Width (A) |
Height (B) |
Depth (C) |
Weight lbs |
| WM-5510 |
8" |
8" |
4" |
3 |
| WM-5511 |
10" |
8" |
4" |
3.5 |
| WM-5512 |
12" |
10" |
4" |
4.8 |
| WM-5513 |
10" |
10" |
5" |
4.6 |
| WM-5514 |
12" |
12" |
6" |
6.5 |

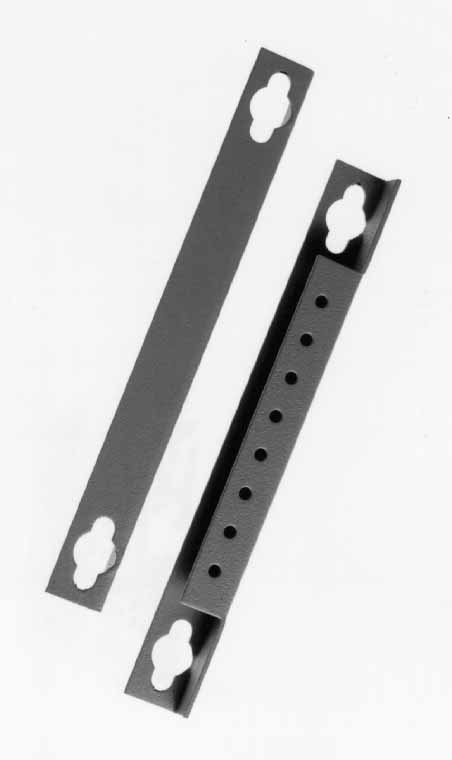

Panel Mounting Brackets
Design Features:
- Heavy gauge steel brackets have EIA spaced holes for mounting your panel or equipment.
- Attaches to box with same fasteners that are used to wall mount the box for maximum strength.
- Comes complete with all panel mounting hardware (wall mounting hardware not included).
Finish:
| Catalog Number |
Length |
Weight lbs |
Fits Cabinet |
| WMB-5570 |
7" |
8 |
WM-5510, WM-5511 |
| WMB-5571 |
9" |
10 |
WM-5512, WM-5513 |
| WMB-5572 |
11" |
12 |
WM-5514 |
Panels
Design Features:
- Heavy gauge steel panels come complete with mounting brackets and all panel mounting hardware.
Finish:
| Catalog Number |
Size |
Weight lbs |
Fits Cabinet |
| WMP-5540 |
7" x 7" |
1.4 |
WM-5510 |
| WMP-5541 |
9" x 7" |
1.7 |
WM-5511 |
| WMP-5542 |
11" x 9" |
2.4 |
WM-5512 |
| WMP-5543 |
9" x 9" |
2 |
WM-5513 |
| WMP-5544 |
11" x 11" |
2.9 |
WM-5514 |
|
