Bud Small Metal Enclosures

Slope Enclosures

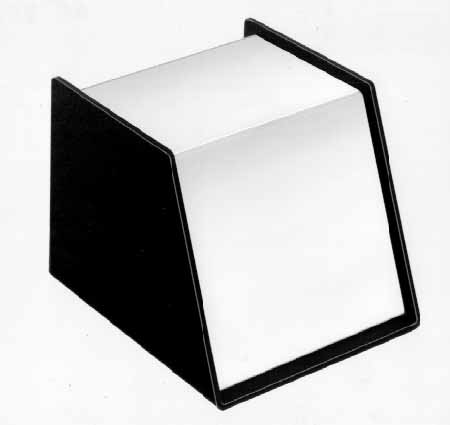

SC-12100 Slope Enclosure The clean, contemporary design of both units gives you excellent visibility of panel mounted components.

Design Features:
  • Base: .090" aluminum.
  • Cover: .050" aluminum.
  • Rubber feet furnished


Finish:
  • Black Texture (BT) base with Smooth White cover.

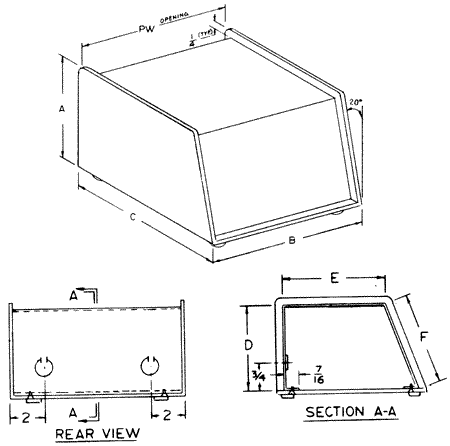

SC-12100 Slope Enclosure Drawing

Catalog Number A B C D E F PW Weight lbs
SC-12100* 4.25" 4-15/16" 5" 3-7/8" 3-1/16" 4-1/8" 4.75" 1.25
SC-12101 3.25" 11-15/16" 10" 2-7/8" 8-7/16" 3-1/16" 11.75" 3.5
* Single knockout only, centered
