Showcase
The design of this Bud unit makes it perfect for your portable instrumentation, yet the versatile, lightweight Showcase will do an effective job as a desktop instrument case, in systems or racks. Compounding its versatility is the fact that the Showcase comes in 10 sizes.
Design Features:
- Top, sides and bottom: .050" aluminum.
- Front panel: .090" aluminum.
- Rear Panel: .050" extruded aluminum frame.
- Side gussets to provide added strength.
- Strong, flexible handle is recessed and secured firmly into top for safe handling.
- Ventilation slots under handle.
Bonus Features:
- Use with chassis or PC boards
- Front panel and chassis may be loaded from front or rear.
- Comes with front and rear panels and bail.
Finish:

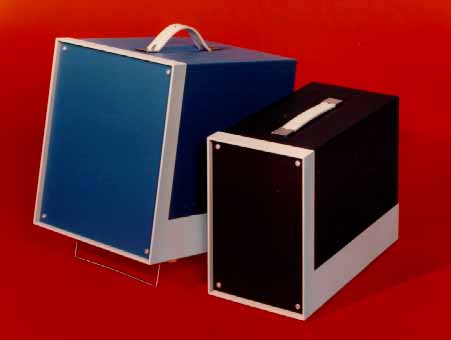

- Black Texture (BT) body with White frame.
- Royal Blue Texture (RB) body with White frame.

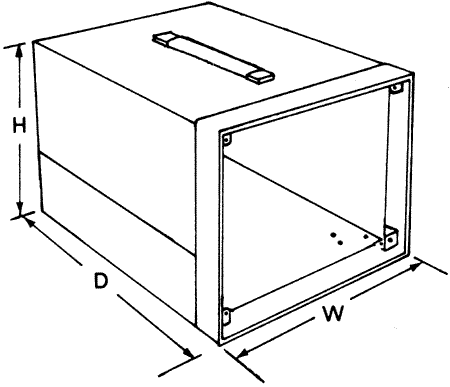

| Catalog Number |
Height |
Width |
Depth |
Front Panel Space |
Rear Panel Space |
Weight lbs |
| BB-1800 |
6-7/16" |
5.5" |
11" |
6-3/16" x 5.25" |
6" x 5-5/32" |
3.75 |
| BB-1801 |
6-7/16" |
8-5/16" |
11" |
6-3/16" x 8-3/64" |
6" x 7-31/32" |
4 |
| BB-1802 |
8-3/16" |
5.5" |
11" |
7-15/16" x 5.25" |
7-7/8" x 5-5/32" |
3.75 |
| BB-1803 |
8-3/16" |
11-1/16" |
11" |
7-15/16" x 8-3/64" |
7-7/8" x 7-31/32" |
5.5 |
| BB-1804 |
8-3/16" |
11-1/16" |
11" |
7-15/16" x 10-53/64" |
7-7/8" x 10-7/8" |
5.75 |
| BB-1805 |
9-15/16" |
5.5" |
11" |
9-11/16" x 5.25" |
9.5" x 5-5/32" |
4.75 |
| BB-1806 |
9-15/16" |
8-5/16" |
11" |
9-11/16" x 8-3/64" |
9.5" x 7-31/32" |
5.25 |
| BB-1807 |
9-15/16" |
8-5/16" |
15" |
9-11/16" x 8-3/64" |
9.5" x 7-31/32" |
6.25 |
| BB-1808 |
9-15/16" |
11-1/16" |
11" |
9-11/16" x 10-53/64" |
9.5" x 10-7/8" |
6 |
| BB-1809 |
9-15/16" |
11-1/16" |
15" |
9-11/16" x 10-53/64" |
9.5" x 10-7/8" |
7 |
|
