PlastiBox™

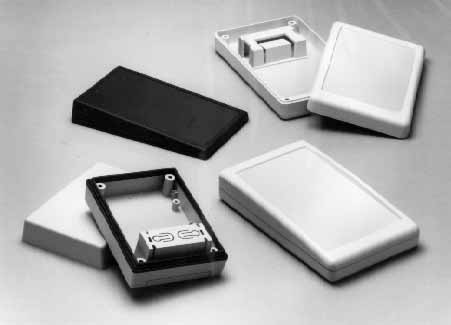

Available in four styles and a variety of sizes, these functional utility enclosures are made from UL rated high-impact plastics with scratch resistant finish.
Styles A and B have squared corners and bosses for mounting horizontal cards. Most sizes also come with vertical mounting guides. Styles A and B are available in high impact ABS, and in two colors, black and gray. To order black add siffix -B to catalog number. To order gray add suffix -G.
Styles C and D have rounded edges and corners. The interior is plain with no card guides or bosses, allowing for more useable space. Styles C and D are available in high impact polystyrene and PC Bone Gray ONLY. Optional universal mounting bosses are available.
There are two types of finishes available as well as a built in 9 volt battery compartment and snap in wall mount in some models. To order properly, refer to the following prefixes:
- Prefix PS: Textured body with smooth top insert for silk screening capability.
- Prefix PT: Textured body with textured top.
- Prefix PBS: Textured body with smooth top insert and 9-volt battery compartment.
- Prefix PWS: Textured body with smooth top insert and snap-in wall mount capability.
- Prefix PNS: Textured body with smooth top and end inserts and 9-volt battery compartment.
- Prefix PSS: Textured body with smooth top and end inserts.
| Catalog Number |
Style |
A |
B |
C |
D |
Weight ozs |
| PT-11284 |
A |
9.5" |
6-11/32" |
29/32" |
3/32" |
8 |
| PS-11285 |
A |
9.5" |
6-11/32" |
29/32" |
3/32" |
8 |
| PS-11296 |
A |
4-3/8" |
3.25" |
29/32" |
3/32" |
3 |
| PWS-11297 |
A |
4-3/8" |
3.25" |
29/32" |
3/32" |
3 |
| PS-11298 |
A |
5-5/8" |
3.25" |
29/32" |
3/32" |
3.5 |
| PWS-11299 |
A |
5-5/8" |
3.25" |
29/32" |
3/32" |
3.5 |
| PS-11301 |
A |
3-5/8" |
2.25" |
1" |
11/16" |
2 |
| PT-11308 |
A |
3-5/8" |
2.25" |
1.5" |
11/16" |
2.5 |
| PS-11317 |
A |
4-3/8" |
3.25" |
1.5" |
11/16" |
3.5 |
| PBS-11319 |
A |
4-3/8" |
3.25" |
1.5" |
11/16" |
3.5 |
| PS-11325 |
A |
5-5/8" |
3.25" |
1.5" |
11/16" |
4 |
| PBS-11327 |
A |
5-5/8" |
3.25" |
1.5" |
11/16" |
4.5 |
| PS-11333 |
A |
6-7/8" |
4-7/8" |
1.5" |
11/16" |
6.5 |
| PT-11338 |
A |
9.5" |
6-11/32" |
1.5" |
11/16" |
9 |
| PS-11339 |
A |
9.5" |
6-11/32" |
1.5" |
11/16" |
8.5 |
| PT-11372 |
A |
3-5/8" |
2.25" |
2.5" |
11/16" |
3 |
| PT-11380 |
A |
4-3/8" |
3.25" |
2.5" |
11/16" |
4.5 |
| PT-11388 |
A |
5-5/8" |
3.25" |
2.5" |
11/16" |
5 |
| PT-11396 |
A |
6-7/8" |
4-7/8" |
2.5" |
11/16" |
8.5 |
| PS-11290* |
B |
5-5/8" |
3.25" |
29/32" |
3/32" |
3 |
| PWS-11291* |
B |
5-5/8" |
3.25" |
29/32" |
3/32" |
3 |
| PS-11292 |
B |
5-5/8" |
3.25" |
1.5" |
11/16" |
3.5 |
| PBS-11294 |
B |
5-5/8" |
3.25" |
1.5" |
11/16" |
4 |
| PSS-11295 |
B |
4-7/8" |
6-7/8" |
1-7/8" |
3/32" |
5.5 |
| PSS-11350 |
B |
4-7/8" |
6-7/8" |
2.5" |
11/16" |
6.5 |
| PNS-11351 |
B |
4-7/8" |
6-7/8" |
2.5" |
11/16" |
6.5 |
| PS-11272* |
C |
6-19/64" |
3.75" |
1-5/32" |
.5" |
4.5 |
| PBS-11273* |
C |
6-19/64" |
3.75" |
1-13/32" |
.75" |
5 |
| PS-11274* |
D |
6-19/64" |
3.75" |
1-5/32" |
.5" |
4.5 |
| PBS-11275* |
D |
6-19/64" |
3.75" |
1-25/64" |
.75" |
5 |
| PS-11276* |
C |
6-19/64" |
3.75" |
1-13/32" |
.75" |
5 |
| PS-11279* |
D |
6-19/64" |
3.75" |
1-27/64" |
.75" |
5 |
* Do not include vertical card guides
All PlastiBox models come with four non-skid feet which mount on bottom of enclosure for tabletop use. |
Optional Accessories:
Perimeter Gasket Kit: Available for Styles A and B in most sizes to provide an effective barrier to outside environments.
| Catalog Number |
Fits |
| PG-1172 |
PS-11301, PT-11308, PT-11372 |
| PG-1174 |
PS-11317, PBS-11319, PT-11380, PS-11296, PWS-11297 |
| PG-1176 |
PS-11325, PBS-11327, PT-11388, PS-11298, PWS-11299, PS-11290, PWS-11291, PS-11292, PBS-11294 |
Mounting Boss Kit: Universal PC board mounting bosses, for styles C and D, fit into .130" diameter holes in PC board and can be glued to base of PlastiBox. Specify Catalog Number PMB-11282.
|
