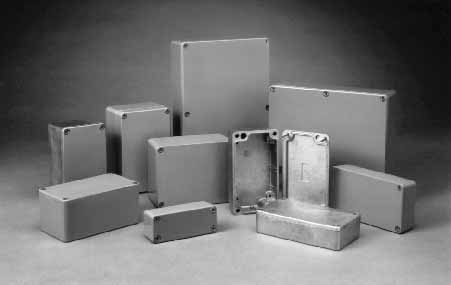

NEMA 4 Sealed Die Cast Aluminum Enclosures
Die cast in aluminum alloy and resistant to atmoshperic and marine corrosion, these enclosures are ideal for housing sensitive electronic assemblies and pneumatic, hydraulic and electrical devices in both commercial and industrial environments.
Design Features:
- Designed to IP 65 of IEC 529 and NEMA 4.
- Wallmounting holes (except AN-1300) and cover attaching screws outside the sealing area thus preventing ingress of moisture and dust.
- Cover incorporates a recessed neoprene gasket.
- Internal bosses for mounting PCBs horizontally or for connecting terminals, ground, etc.
- Internal guide slots for mounting PCB assemblies vertically.
- Screw holes for cover mounting are roll threaded and screws are captive and recessed.
Specifications:
- Body and Cover: Aluminum Alloy #A380.
- Gasket: Neoprene.
- Cover Screws: M-4 Stainless Steel, non-magnetic.
- Ground Screw and Washer: Copper plated.
Finish:
| Catalog Number |
External Length |
External Width |
External Height |
Thickness |
Weight ozs |
| AN-1300 |
3.54" |
1.42" |
1.18" |
.130" |
5 |
| AN-1301 |
2.52" |
2.28" |
1.38" |
.138" |
5 |
| AN-1302 |
4.53" |
2.56" |
1.18" |
.134" |
8 |
| AN-1303 |
4.53" |
2.56" |
2.17" |
.130" |
12 |
| AN-1304 |
4.53" |
3.54" |
2.17" |
.130" |
14 |
| AN-1305 |
5.83" |
4.25" |
2.95" |
.130" |
24 |
| AN-1306 |
6.73" |
4.76" |
2.17" |
.130" |
24 |
| AN-1307 |
8.82" |
5.83" |
2.17" |
.210" |
49 |
|
