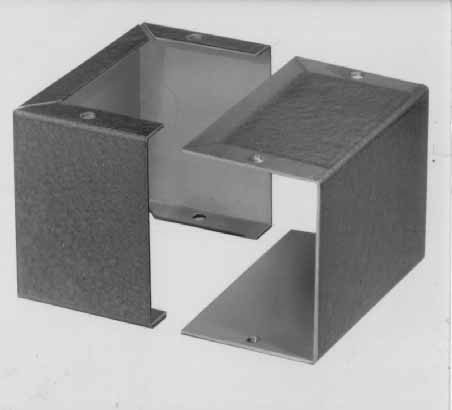

Miniboxes
Design Features:
- .040" aluminum alloy.
- Two sections slip together and may be joined by either built in snap lock or sheet metal screws (included).
- Flanged sections assure proper shielding.
- Units can be separate housings or as part of larger assemblies.
Finish:
- Natural (A)
- Smooth Gray (B)
| Smooth Gray Catalog Number |
Natural Catalog Number |

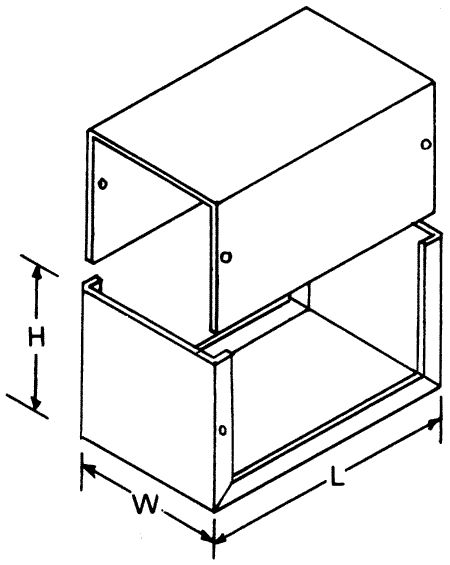

Length |
Width |
Height |
Weight lbs |
| CU-2100B |
CU-3000A |
2.75" |
2-1/8" |
1-5/8" |
.25 |
| CU-2101B |
CU-3001A |
3.25" |
2-1/8" |
1-5/8" |
.25 |
| CU-2102B |
CU-3002A |
4" |
2-1/8" |
1-5/8" |
.25 |
| CU-2103B |
CU-3003A |
4" |
2.25" |
2.25" |
.25 |
| CU-2104B |
CU-3004A |
5" |
2.25" |
2.25" |
.25 |
| CU-2105B |
CU-3005A |
5" |
4" |
3" |
.5 |
| CU-2106B |
CU-3006A |
5.25" |
3" |
2-1/8" |
.25 |
| CU-2107B |
CU-3007A |
6" |
5" |
4" |
.75 |
| CU-2108B |
CU-3008A |
7" |
5" |
3" |
.75 |
| CU-2109B |
CU-3009A |
8" |
6" |
3.5" |
1 |
| CU-2110B |
CU-3010A |
10" |
6" |
3.5" |
1.25 |
| CU-2111B |
CU-3011A |
12" |
7" |
4" |
1.75 |
| CU-2112B |
CU-3012A |
17" |
5" |
4" |
2.25 |
| CU-2113B |
CU-3013A |
10" |
2" |
1-5/8" |
.5 |
| CU-2114B |
CU-3014A |
12" |
2.5" |
2.25" |
.75 |
|
