Bud Small Metal Enclosures

Keyboard Enclosures

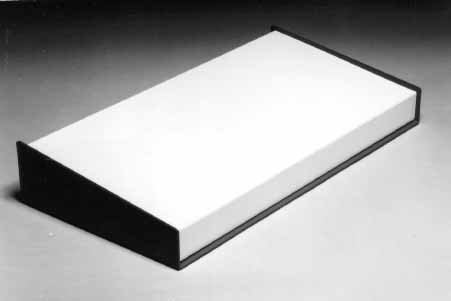

KB-13200 Keyboard Enclosure

Design Features:
  • Base: .090" aluminum.
  • Cover: .050" aluminum.
  • Prepainted smooth white cover.
  • Self-adhesive black rubber feet.
  • Shipped completely assembled.
  • Bud can punch these enclosures to conform with your keyboard arrangements prior to forming. Prints available for your layouts.

KB-13200

  • Two .5" knockouts in rear.
  • 7 Degree 46' angle top.
  • Weighs 1 lb. 3 oz.

KB-13201

  • Two 7/8" knockouts in rear.
  • 7 Degree 40' angle top.
  • Weighs 2 lbs. 9 oz.

KB-13202

  • Two 7/8" knockouts in rear.
  • 7 Degree 32' angle top.
  • Weighs 4 lbs. 2 oz.


Finish:
  • Gray Texture (GT) base with Smooth White cover.

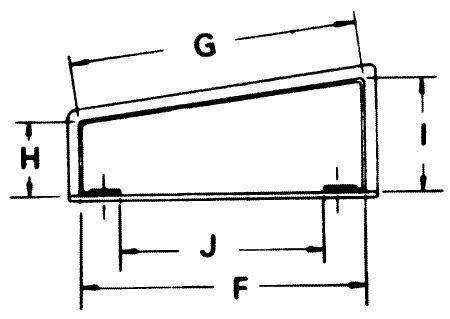

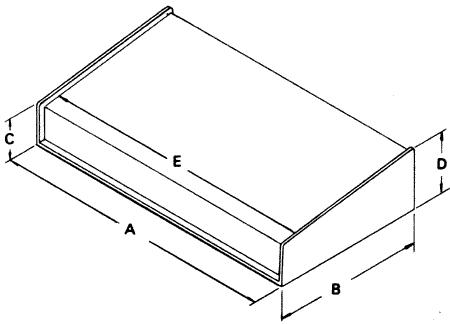

KB-13200 Keyboard Enclosure Drawing KB-13200 Keyboard Enclosure Drawing
Catalog Number A B C D E F G H I J
KB-13200 7-7/32" 5.75" 1-23/32" 2-15/32" 7" 5.5" 5-35/64" 1.5" 2.25" 4-5/8"
KB-13201 12-27/32" 7" 1-27/32" 2.75" 12-5/8" 6.5" 6-9/16" 1.5" 2-3/8" 4.75"
KB-13202 17-15/32" 9" 1-27/32" 3" 17.25" 8.5" 8-37/64" 1.5" 2-5/8" 6.75"
