Bud Die Cast Aluminum Enclosures

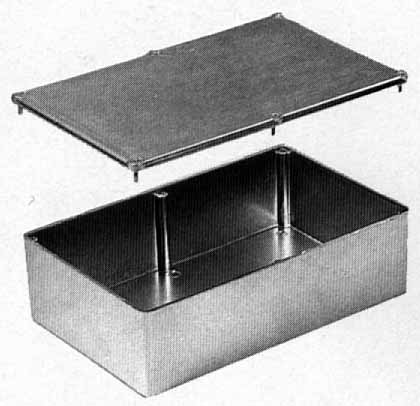

Econobox Low-Cost Cast Aluminum Enclosure

CU-123 Econobox Bud offers five box sizes, each with close fitting flanged lids fastened to bosses in the body with screws. This, plus the thickness of the aluminum alloy (380), offers excellent screening properties.

These lightweight, easy to machine enclosures have a number of uses: instrument and meter cases, filter networks, junction bosses, switching and many other applications requiring a small box. In addition, they're ideal for concealed or other interior use where a safety closure is necessary.

Finish:
  • Natural
CU-123 Drawing

Catalog Number A B C D E Thickness Weight lbs
CU-123 3-5/8" 1.5" 1-1/16" 3.25" 1-1/8" 1/16" .5
CU-124 4-3/8" 2-3/8" 1-1/16" 4" 2" 1/16" .5
CU-234 4-11/16" 3-11/16" 2-1/16" 4-5/16" 3-5/16" 3/32" .75
CU-247 7-25/64" 4-45/64" 2-1/16" 7" 4-5/16" 3/32" 1.25
CU-347 7-25/64" 4-45/64" 3-1/16" 7" 4-5/16" 3/32" 1.5
Bosses "X" on CU-247 and CU-347 only.
Screws 6 x 32-1/2" flat head screws furnished.
