Bud Small Metal Enclosures

Cowl-Type Boxes

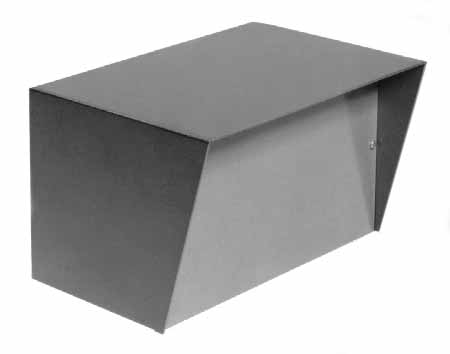

SC-2130 Cowl Type Box

Design Features:
  • .040" aluminum alloy.
  • Cover has two box braces.
  • Bottom attached with four self-tapping screws.
  • Projecting cover minimizes glare on front panel from overhead lights.


Finish:
  • Natural
  • Metallic Gray (MG)
Metallic Gray Catalog Number Natural Catalog Number Overall Dimmensions When Assembled Weight lbs
Height Width Depth
SC-2130 SC-3030 6" 10" 7" 1.75
SC-2131 SC-3031 7" 12" 8" 2
SC-2132 SC-3032 3" 8" 5" 1

Metallic Gray Catalog Number Natural Catalog Number Base Dimensions
Height Width Depth
SC-2130 SC-3030 5-15/16" 9-13/16" 5-3/16"
SC-2131 SC-3031 6-15/16" 11-13/16" 5-15/16"
SC-2132 SC-3032 2-15/16" 7-13/16" 4"
