Contempo Series
Here's a versatile line of Bud enclosures you can use for any number of applications, and their versatility is equalled by functional modern styling.
Design Features:
- Body: .062" aluminum.
- End Panels: 5/16" molded ABS plastic.
- 22 sizes in four styles.
- Supplied with tie-bar, screws and four self-adhesive rubber feet.

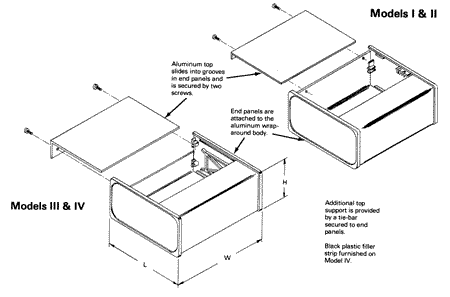

- Top slides into grooves in end panels and is secured with two screws.
- Black plastic filler supplied on model IV only.
Finish:
- "B" Prefix: black pebble end panels with smooth gray body.
- "W" Prefix: Woodgrain finish end panels with snooth eggshell white body.

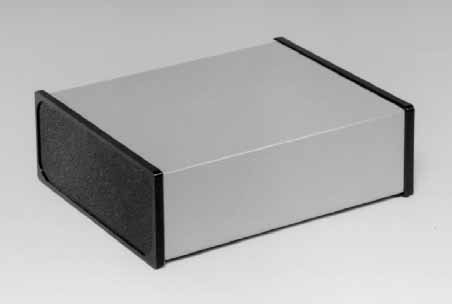

| Contempo Series Model I |
| Catalog Number |
Inside Width |
Outside Width |
Weight ozs |
| JB-1650 |
3" |
4-1/8" |
11 |
| JB-1651 |
4-1/16" |
5-3/16" |
13 |
| JB-1652 |
5-1/16" |
6-3/16" |
15 |
| JB-1653 |
6-1/16" |
7-3/16" |
16 |
| JB-1654 |
7-1/8" |
8-1/4" |
18 |
| JB-1655 |
9.25" |
10-3/8" |
21 |
| JW-3200 |
3" |
4-1/8" |
11 |
| JW-3201 |
4-1/16" |
5-3/16" |
13 |
| JW-3202 |
5-1/16" |
6-3/16" |
15 |
| JW-3203 |
6-1/16" |
7-3/16" |
16 |
| JW-3204 |
7-1/8" |
8-1/4" |
18 |
| JW-3205 |
9.25" |
10-3/8" |
21 |
| Inside height: 2-1/8", Outside height: 2-7/16", Inside depth: 5-9/16", Ouside depth: 5-16/16" |

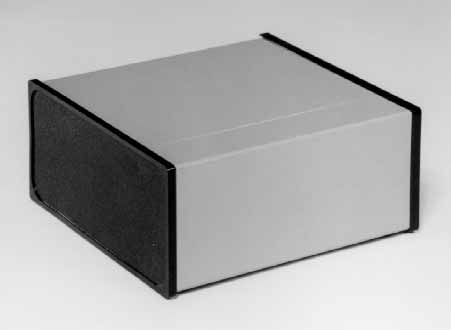

| Contempo Series Model II |
| Catalog Number |
Inside Width |
Outside Width |
Weight ozs |
| LB-1660 |
3-3/16" |
4-1/8" |
13 |
| LB-1661 |
4.25" |
5-3/16" |
14 |
| LB-1662 |
5.25" |
6-3/16" |
15 |
| LB-1663 |
6.25" |
7-3/16" |
17 |
| LB-1664 |
7-5/16" |
8.25" |
19 |
| LB-1665 |
9-7/16" |
10-3/8" |
24 |
| LW-3210 |
3-3/16" |
4-1/8" |
13 |
| LW-3211 |
4.25" |
5-3/16" |
14 |
| LW-3212 |
5.25" |
6-3/16" |
15 |
| LW-3213 |
6.25" |
7-3/16" |
17 |
| LW-3214 |
7-5/16" |
8.25" |
19 |
| LW-3215 |
9-7/16" |
10-3/8" |
24 |
| Inside height: 3", Outside height: 3.25", Inside depth: 6.75", Ouside depth: 7" |

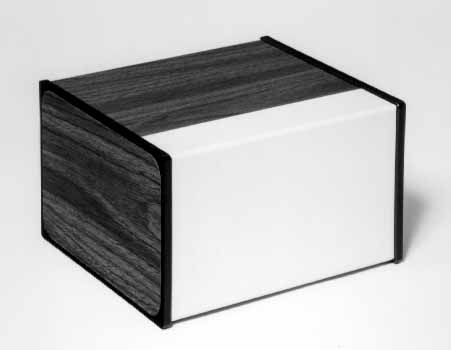

| Contempo Series Model III |
| Catalog Number |
Inside Width |
Outside Width |
Weight ozs |
| MB-1670 |
4.25" |
5-3/16" |
16 |
| MB-1671 |
5.25" |
6-3/16" |
18 |
| MB-1672 |
6.25" |
7-3/16" |
20 |
| MB-1673 |
7-5/16" |
8.25" |
22 |
| MB-1674 |
9-7/16" |
10-3/8" |
27 |
| MB-1675 |
11-7/16" |
12-3/8" |
32 |
| MW-3220 |
4.25" |
5-3/16" |
16 |
| MW-3221 |
5.25" |
6-3/16" |
18 |
| MW-3222 |
6.25" |
7-3/16" |
20 |
| MW-3223 |
7-5/16" |
8.25" |
22 |
| MW-3224 |
9-7/16" |
10-3/8" |
27 |
| MW-3225 |
11-7/16" |
12-3/8" |
32 |
| Inside height: 4-3/16", Outside height: 4-7/16", Inside depth: 6-5/16", Ouside depth: 6-9/16" |

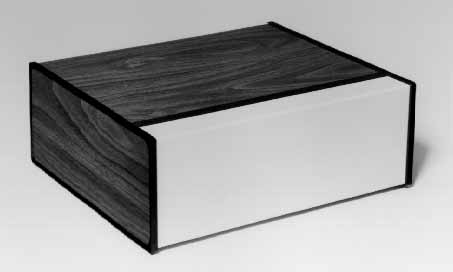

| Contempo Series Model IV |
| Catalog Number |
Inside Width |
Outside Width |
Weight ozs |
| DB-1680 |
7-5/16" |
8-5/16" |
32 |
| DB-1681 |
9-5/16" |
10-5/16" |
37 |
| DB-1682 |
11-5/16" |
12-5/16" |
44 |
| DB-1683 |
13-5/16" |
14-5/16" |
48 |
| DW-3230 |
7-5/16" |
8-5/16" |
32 |
| DW-3231 |
9-5/16" |
10-5/16" |
37 |
| DW-3232 |
11-5/16" |
12-5/16" |
44 |
| DW-3233 |
13-5/16" |
14-5/16" |
48 |
| Inside height: 4-3/16", Outside height: 4-7/16", Inside depth: 10.25", Ouside depth: 10.5" |
|
