Aluminum Chassis
From Bud, the widest selection of aluminum chassis in the industry: 45 sizes.
Design Features:
 Each is welded at stress points for assured, maximum strength and rigidity.
- Sides folded in at bottom for additional support.
- Bottom plate easily attached.
Finish:

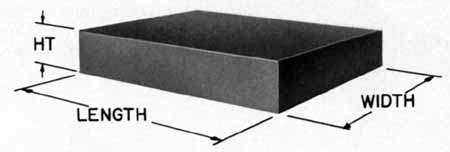

| Catalog Number |
Width |
Length |
Height |
Gauge |
Weight lbs. |
| AC-1402# |
3.5" |
4.5" |
1" |
.040 |
1/8 |
| AC-1404 |
4" |
5" |
2" |
.040 |
.25 |
| AC-1405 |
4" |
6" |
1.5" |
.040 |
.25 |
| AC-430 |
4" |
6" |
3" |
.040 |
1/3 |
| AC-431 |
4" |
6" |
2" |
.040 |
.25 |
| AC-1407 |
4.5" |
8" |
1.5" |
.040 |
.25 |
| AC-402 |
5" |
7" |
2" |
.040 |
1/3 |
| AC-429 |
55" |
7" |
3" |
.040 |
.5 |
| AC-403 |
5" |
9.5" |
2" |
.040 |
.5 |
| AC-401 |
5" |
9.5" |
2.5" |
.040 |
.5 |
| AC-421 |
5" |
9.5" |
3" |
.040 |
5/8 |
| AC-404 |
5" |
10" |
3" |
.040 |
5/8 |
| AC-1413 |
6" |
8" |
2" |
.040 |
1/3 |
| AC-1414 |
6" |
14" |
3" |
.050 |
1/8 |
| AC-1402 |
3.5" |
4.5" |
1" |
.040 |
1-1/8 |
| AC-433 |
6" |
17" |
3" |
.050 |
1.25 |
| AC-405 |
7" |
7" |
2" |
.040 |
.5 |
| AC-406 |
7" |
9" |
2" |
.040 |
.5 |
| AC-407 |
7" |
11" |
2" |
.040 |
5/8 |
| AC-408 |
7" |
12" |
3" |
.040 |
7/8 |
| AC-409 |
7" |
13" |
2" |
.040 |
.75 |
| AC-4112 |
7" |
15" |
3" |
.050 |
1.25 |
| AC-1416 |
7" |
17" |
2" |
.050 |
1-1/8 |
| AC-423 |
7" |
17" |
3" |
.050 |
1.5 |
| AC-1418 |
8" |
10" |
2.5" |
.040 |
1 |
| AC-14192 |
8" |
12" |
2.5" |
.050 |
1-1/8 |
| AC-424 |
8" |
12" |
3" |
.050 |
1.25 |
| AC-412* |
8" |
15" |
3" |
.050 |
1.75 |
| AC-1421 |
9" |
15" |
3" |
.050 |
1.5 |
| AC-413 |
10" |
12" |
3" |
.050 |
1.25 |
| AC-414 |
10" |
14" |
3" |
.050 |
1.5 |
| AC-415* |
10" |
17" |
2" |
.050 |
1.5 |
| AC-416* |
10" |
17" |
3" |
.050 |
1.75 |
| AC-427* |
10" |
17" |
4" |
.050 |
2.5 |
| AC-1422 |
10" |
17" |
5" |
.050 |
2.25 |
| AC-1424 |
12" |
12" |
3" |
.050 |
1.25 |
| AC-418* |
12" |
17" |
3" |
.050 |
2.25 |
| AC-419* |
13" |
17" |
2" |
.050 |
2-5/8 |
| AC-420* |
13" |
17" |
3" |
.050 |
2.75 |
| AC-428* |
13" |
17" |
4" |
.050 |
3.25 |
| AC-1426 |
13" |
17" |
5" |
.050 |
3.5 |
| AC-1427 |
14" |
17" |
3" |
.050 |
2.75 |
| AC-1428 |
15" |
17" |
4" |
.050 |
3.25 |
| AC-1429 |
15" |
17" |
6" |
.050 |
4-18 |
| AC-1430 |
17" |
17" |
3" |
.050 |
3.25 |
| AC-1431 |
17" |
17" |
4" |
.050 |
3-7/8 |
* Holes for chassis mounting brackets provided.
# Not welded. |
|
