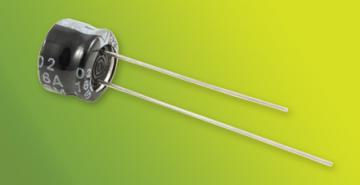

Ultra Miniature Radial Lead Capacitors

Font size: Decrease font Enlarge font
image 1122860/37714678

ULM series of ultra miniature aluminum electrolytic capacitors are designed for use in general purpose applications. These high temperature, radial lead capacitors are especially suitable for applications that require small size, extended life, and higher temperature operation.



5mm ULTRA MINIATURE

(Radial Lead, 105* C Max)



The ULM series of ultra miniature aluminum electrolytic capacitors are designed for use in general purpose applications. These high temperature, radial lead capacitors are especially suitable for applications that require small−size, extended life, and higher temperature operation.



RATINGS

Capacitance Range: 0.1uf to 470 uf

Tolerance: 20%

Voltage Range: 6.3V to 50 Volts



PERFORMANCE SPECIFICATIONS

Operating Temperature Range:

6.3V to 50V: -40 * C to +105* C (-40 F to +220.9 F)

Leakage Current:

6.3V to 50V: 0.01CV (+3 uA)

Capacitance Tolerance: 20% (M)

measured at +20 C (+68 F), 120HZ

Dissipation Factor: measured at +20 C (+68 F),120HZ
