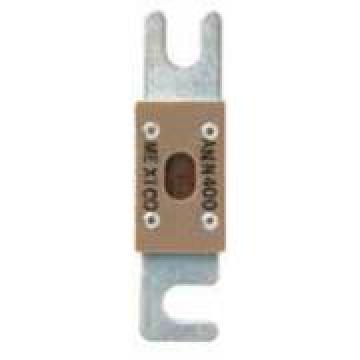

ANL Series Non Time-Delay Current Limiters

Catalog Symbol: ANL
Non-Time Delay
Ampere Rating: 35 to 750A
Voltage Rating: 32Vac (or less); 80Vdc (or less)
Interrupting Rating: 6,000A ac, 2,700A dc

Agency Information:
UL Recognized, (600, 675 and 750A only)
Guide JFHR2, File E56412
SAE J1171 (35-500A): Ignition Protected

General Information:
• Isolates faults in equipment systems such as lifttrucks and other battery operated systems.
• Silver-plated copper link.
• Link element visible through mica window.

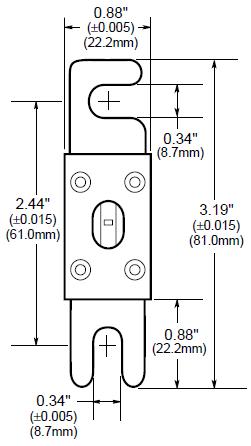

Dimensional Data

Electrical Ratings (Catalog Symbol and Amperes)

32Vac IR 6000A			32Vac IR 2700A
ANL-35	ANL-130	ANL-300	ANL-600
ANL-40	ANL-150	ANL-325	ANL-675
ANL-50	ANL-175	ANL-350	ANL-750
ANL-60	ANL-200	ANL-400	-
ANL-80	ANL-225	ANL-500	-
ANL-100	ANL-250	-	-
ANL-125	ANL-275	-	-

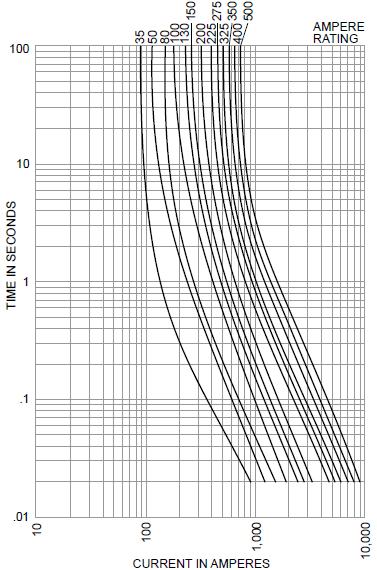

Time-Current Characteristic Curves–Average Melt


Fuse Block:
Catalog Number: 4164, 4164-FR

Description: Limiter fuse blocks for ANL & ANN.

• 4164 furnished with nylon inserted locknuts
• 4164-FR furnished with standard hex nuts

Dimensions Length: 3.38" Width: 0.95" Height: 1.62" Studs center to center: 2.43"
Poles: 1 - stud terminal

Volts: 125Vac, 80Vdc
Amps: 10-800A
