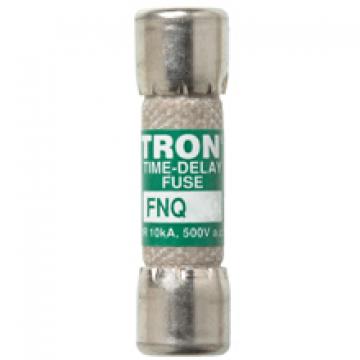

FNQ Tron time delay supplementary fuses

Font size: Decrease font Enlarge font

Class: Supplemental
Description: Time-delay supplementary fuse.
• Nickel plated brass endcaps.
• For motor control transformers and other circuits with in-rush currents.

Dimensions: 13⁄32” x 11⁄2” (10.3 x 38.1mm).


Ratings:
Volts: 500Vac (or less)
Amps: 1/10-30A
IR: 10kA RMS Sym.
Agency Information: CE, Std. 248-14, UL Listed, Guide JDYX, File E19180 CSA Certified, Class 1422-01, File 53787.

Features and Benefits
• Low cost supplemental protection of transformers and relays at 500V or less.

Typical Applications
• Control Transformer 480V Primary Protection
• Lighting Circuit Protection
• Meter Circuits

Catalog Numbers (Amps)

FNQ-1/10 FNQ-1/2 FNQ-2 FNQ-5 FNQ-12
FNQ-1/8 FNQ-6/10 FNQ-2-1/4 FNQ-5-6/10 FNQ-14
FNQ-15/100 FNQ-8/10 FNQ-2-1/2 FNQ-6 FNQ-15
FNQ-3/16 FNQ-1 FNQ-3 FNQ-6-1/4 FNQ-20
FNQ-2/10 FNQ-1-1/8 FNQ-3-2/10 FNQ-7 FNQ-25
FNQ-1/4 FNQ-1-1/4 FNQ-3-1/2 FNQ-8 FNQ-30
FNQ-3/10 FNQ-1-1/2 FNQ-4 FNQ-9
FNQ-4/10 FNQ-1-6/10 FNQ-4-1/2 FNQ-10

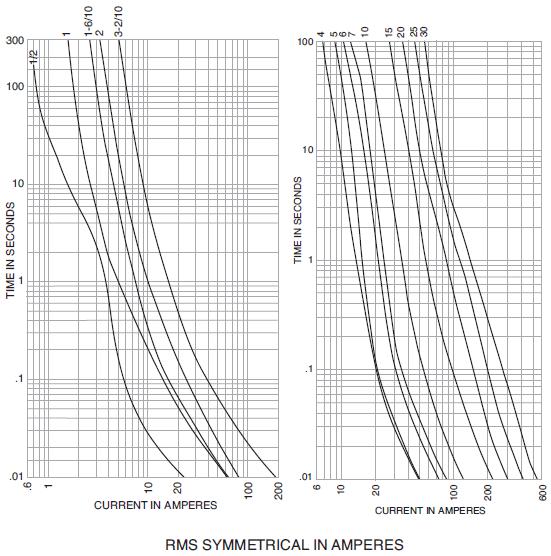

Time-Current Characteristic Curve-Average Melt
