LP-CC Class CC (Low-Peak® Time-delay, Rejection-Type Fuses)

Font size: Decrease font Enlarge font

Low-Peak® Time-delay, Rejection-Type Fuses


LP-CC series Class CC fuses

Specifications
Description: Time-delay, current-limiting, rejection-type fuse – 12 seconds (minimum) at 200% rated amps.
Dimensions: 13⁄32” x 1 1⁄2” (10.3 x 38.1mm).

Ratings:
Volts: 600Vac (or less) / 300Vdc (1⁄2-28⁄10A & 20-30A) / 150Vdc (3-15A)
Amps: 1⁄2-30A
IR: 200kA RMS Sym. 20kA DC
Agency Information: CE, Std. 248-4, Class CC, UL Listed, Guide JDDZ, File E4273, CSA Certified; Class 1422-02, File 53787.

Features and Benefits
• Time delay coupled with Class CC current-limiting response provides close sizing on small motor and relay circuits, and maximum component short-circuit current rating protection.
• 200kA interrupting rating provides high ratings for control circuit locations.
• Class CC rejection feature, with appropriate fuse block, prevents inserting lesser-rated supplementary fuses.
• Inventory consolidation of 13⁄32 x 1 1⁄2 inch supplementary fuses reduces SKU investment and minimizes potential for misapplying fuse.
• Selective coordination ratio of 2:1 (within Low-Peak fuse family) prevents electrical shutdowns from extending beyond the failed circuit.

Typical Applications
• Specialized Circuits
• Industrial Control
• Isolated, In-Line Fuse Holder

LP-CC series catalog numbers (LP-CC-amps)

LP-CC-1/2 LP-CC-1-8/10 LP-CC-4-1/2 LP-CC-10
LP-CC-6/10 LP-CC-2 LP-CC-5 LP-CC-12
LP-CC-8/10 LP-CC-2-1/4 LP-CC-5-6/10 LP-CC-15
LP-CC-1 LP-CC-2-1/2 LP-CC-6 LP-CC-20
LP-CC-1-1/8 LP-CC-2-8/10 LP-CC-6-1/4 LP-CC-25
LP-CC-1-1/4 LP-CC-3 LP-CC-7 LP-CC-30
LP-CC-1-4/10 LP-CC-3-8/10 LP-CC-7-1/2
LP-CC-1-1/2 LP-CC-3-1/2 LP-CC-8
LP-CC-1-6/10 LP-CC-4 LP-CC-9

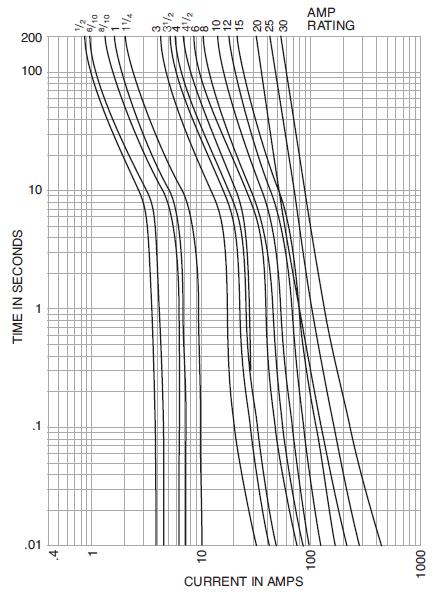

Time Current Characteristics—Average Melt

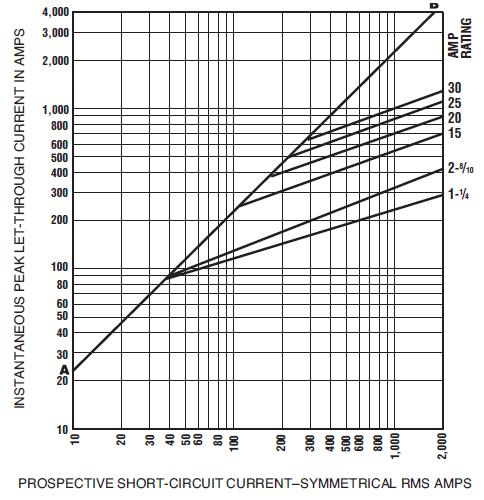

Current Limitation Curves


Recommended Fuse Holders & Blocks For Class CC 600V Fuses Holders
• OPM-NG-SC3 3-pole, panel/DIN rail mount
• OPM-1038R 3-pole, panel/DIN rail mount
• OPM-1038RSW 3-pole w/ switch, panel/DIN rail mount
• CHCC_D 1 to 3-pole, DIN rail mount
• HPF-RR, front panel mount
• HPS-RR, front panel mount Blocks
• BC Series, panel mount Disconnects
• CDF30J3 fusible disconnect switches
• FD400J3 fusible disconnect switches
