NEMA Boxes NEMA 4 X - PNR Series

Font size:

These Polycarbonate and high-impact ABS molded enclosures meet NEMA 1, 2, 4, 4x, 12, and 13 specifications and are ideal for PCB enclosures, junction boxes and other applications in the electrical and electronic industries. Available in a variety of sizes, these molded enclosures are offered in three different versions. Style 1 - Light gray polycarbonate body and cover. Body/Cover - UV stabilized , UL94-HB flammability rating, suggested service temperature -40C to 120C. Style 2 - Light gray polycarbonate body and clear polycarbonate cover. Body/Cover - UV stabilized UL94-HB flammability rating suggested service temperature -40C to 120C. Style 3 - (For indoor use only) Dark gray ABS body and cover. Body/Cover - UL94-HB flammability rating, suggested service temperature 0C to 80C.

Design Features

Designed to IP65 of IEC 529 and NEMA 1, 2, 4, 4x, 12, and 13 specifications
UL508-4x listed
Wall mounting holes and cover attaching screws are outside the sealing area thus preventing ingress of moisture and dust.
Most models have internal guide slots for mounting PCB assemblies vertically.
Internal bosses allow mounting of PCBs horizontally or for connection of terminals etc, into threaded brass inserts.
Cover screws are M-4 stainless steel, non-magnetic and fasten into threaded brass inserts.

NEMA 4X - PNR Series

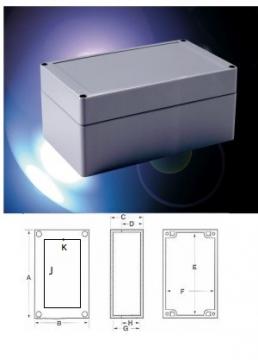

Catalog Numbers			External Dimensions (Inches)				Internal Dimensions (Inches)						Wgt.
Style 1	Style 2	Style 3	A	B	C	D	E	F	G	H	J	K	Ozs.
PNR-2600	PNR-2600-C	PNR-2600-DG		3.94	2.17	1.57	3.64	3.64	1.92	1.45	3.33	2.55	6.3
PNR-2601	PNR-2601-C	PNR-2601-DG	3.94	3.94	3.54	2.95	3.64	3.64	3.29	2.84	3.33	2.55	8.3
PNR-2602	PNR-2602-C	PNR-2602-DG	4.72	3.15	2.17	1.57	4.45	2.85	1.92	1.45	3.54	2.59	6.0
PNR-2603	PNR-2603-C	PNR-2603-DG	4.72	3.15	3.35	2.76	4.45	2.85	3.10	2.64	3.54	2.59	7.8
PNR-2604	PNR-2604-C	PNR-2604-DG	7.87	4.72	3.54	2.36	7.54	4.45	3.29	2.24	6.70	4.14	16.3
PNR-2605	PNR-2605-C	PNR-2605-DG	9.45	4.72	2.36	1.33	9.15	4.45	1.92	1.25	8.25	4.14	14.7
PNR-2606	PNR-2606-C	PNR-2606-DG	9.45	4.72	3.94	2.95	9.12	4.42	3.69	2.84	8.25	4.14	19.3
PNR-2607	PNR-2607-C	PNR-2607-DG	7.87	5.91	2.17	1.57	7.54	5.61	1.92	1.45	6.65	5.32	14.0
PNR-2608	PNR-2608-C	PNR-2608-DG	7.87	5.91	2.95	2.36	7.54	5.61	2.65	2.24	6.65	5.32	15.7
