NEMA Boxes NEMA 4x

Font size:

These Polycarbonate and high-impact ABS molded enclosures meet NEMA ratings 1, 2, 4, 4x, 12, and 13 specifications and are ideal for PCB enclosures, junction boxes and other applications in the electrical and electronic industries. Available in a variety of sizes, these plastic enclosures are offered in three different versions. Style 1 - Light gray polycarbonate body and cover. Body/Cover - UV stabilized , UL94-HB flammability rating, suggested service temperature -40C to 120C. Style 2 - Light gray polycarbonate body and clear polycarbonate cover. Body/Cover - UV stabilized UL94-HB flammability rating suggested service temperature -40C to 120C. Style 3 - (For indoor use only) Dark gray ABS body and cover. Body/Cover - UL94-HB flammability rating, suggested service temperature -20C to 80C. All styles feature specialized captive screws that are screwed into the cover and stay in it when the cover is removed

Design Features

UL508A & NEMA 1, 2, 3, 4, 4x 12, and 13 enclosure specifications
Designed to IP65 of IEC 529
UL Listed (E194432 Vol 1)
Wall mounting holes and cover attaching screws are outside the sealing area thus preventing ingress of moisture and dust.
Most models have internal guide slots for mounting PCB assemblies vertically.
Internal bosses allow mounting of PCBs horizontally or for connection of terminals etc.
Threaded brass inserts (except for PN-1320 , PN-1330, PN-1342, PN-1343, PN-1344)
Cover screws are M-4 stainless steel, non-magnetic and fasten into threaded brass inserts.
Gasket Material: Silicon Sponge

NEMA 4X - PN Series

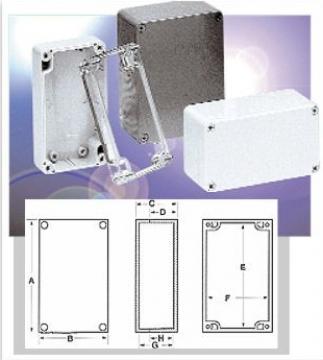

Catalog Numbers			External Dimensions (Inches)				Internal Dimensions (Inches)				Wgt.
Style 1	Style 2	Style 3	A	B	C	D	E	F	G	H	Ozs.
PN-1320	PN-1320-C	PN-1320-DG	2.52	2.28	1.38	0.99	2.28	2.04	1.18	0.89	2.5
PN-1321	PN-1321-C	PN-1321-DG	4.53	2.56	1.57	0.99	4.16	2.19	1.37	0.89	4.0
PN-1322	PN-1322-C	PN-1322-DG	4.53	2.56	2.17	1.58	4.16	2.19	1.97	1.48	5.0
PN-1323	PN-1323-C	PN-1323-DG	4.53	3.54	2.17	1.58	4.16	3.18	1.93	1.46	5.5
PN-1324	PN-1324-C	PN-1324-DG	6.73	4.76	2.17	1.58	6.37	4.40	1.93	1.46	10.0
PN-1325	PN-1325-C	PN-1325-DG	8.74	5.75	2.17	1.58	8.37	5.39	1.93	1.46	15.5
PN-1326	PN-1326-C	PN-1326-DG	7.68	3.15	2.17	1.78	7.40	2.87	1.93	1.66	7.4
PN-1327	PN-1327-C	PN-1327-DG	6.73	4.76	3.15	1.58	6.37	4.40	2.92	1.46	13.0
PN-1328	PN-1328-C	PN-1328-DG	4.53	3.54	3.15	2.56	4.29	3.30	2.92	2.44	7.2
PN-1329	PN-1329-C	PN-1329-DG	8.74	5.75	2.95	1.58	8.37	5.39	2.71	1.46	18.6
PN-1330	PN-1330-C	PN-1330-DG	2.05	1.97	1.38	0.99	1.82	1.74	1.19	0.89	1.4
PN-1331	PN-1331-C	PN-1331-DG	3.23	3.15	2.17	1.58	2.99	2.91	1.89	1.42	4.3
PN-1332	PN-1332-C	PN-1332-DG	6.30	3.15	2.17	1.58	6.06	2.91	1.89	1.42	6.8
PN-1333	PN-1333-C	PN-1333-DG	6.30	3.15	3.35	2.76	6.60	2.91	3.08	2.60	9.8
PN-1334	PN-1334-C	PN-1334-DG	7.87	4.72	2.95	2.37	7.61	4.46	2.68	2.21	14.4
PN-1335	PN-1335-C	PN-1335-DG	10.43	7.28	3.74	2.95	10.17	7.02	3.49	2.82	28.0
PN-1336	PN-1336-C	PN-1336-DG	4.72	4.72	2.36	1.18	4.48	4.48	2.12	1.06	7.7
PN-1337	PN-1337-C	PN-1337-DG	4.72	4.72	3.54	2.36	4.48	4.48	3.31	2.24	9.8
PN-1338	PN-1338-C	PN-1338-DG	6.30	6.30	2.36	1.18	6.06	6.06	2.12	1.06	11.5
PN-1339	PN-1339-C	PN-1339-DG	6.30	6.30	3.54	2.36	6.06	6.06	3.31	2.24	13.6
PN-1340	PN-1340-C	PN-1340-DG	9.45	6.30	3.54	3.01	9.17	6.02	3.26	2.81	22.0
PN-1341	PN-1341-C	PN-1341-DG	9.45	6.30	4.72	3.01	9.17	6.02	4.44	2.81	27.4
PN-1342	PN-1342-C	PN-1342-DG	11.81	9.06	3.39	2.22	11.57	8.82	3.11	2.04	31.0
PN-1343	PN-1343-C	PN-1343-DG	11.81	9.06	4.37	2.22	11.57	8.82	4.09	2.04	34.0
PN-1344	PN-1344-C	PN-1344-DG	14.17	7.87	5.91	3.94	13.85	7.56	5.63	3.62	49.0
