NEMA Boxes NEMA 4X - PIP

Font size: Decrease font Enlarge font

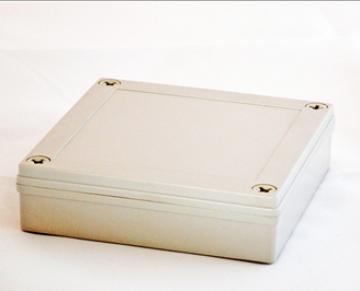

These High impact resistance Gray Polycarbonate (PC) resin 10% glass fiber filled molded enclosures rated IP67 (TUV) and meet NEMA 1, 2, 4, 4x and 6 specifications. UV stabilized UL94-V0 flammability rating suggested service temperature -40C to 120C. and are ideal for PCB enclosures, junction boxes and other applications in the electrical and electronic industries. Available in a variety of sizes.

Design Features

  • Body Made of Gray Polycarbonate (PC) resin 10% glass fiber filled
  • Cover made of Gray Polycarbonate (PC)
  • High impact resistance
  • IP-67 TUV rating to keep out dust and water in extreme conditions (meets NEMA Type 6).
  • UL508 / UL tested for type 4X, listed #E343339.
  • RoHs compliant
  • Non-chlorinated & non-brominated flame retardant With UL-94 V0 rating.
  • Suitable for outdoor use with respect to exposure to Ultraviolet Light, Water Exposure and Immersion in accordance with UL 746C.
  • Nonmetallic captive screws without the risk of stripping.
  • Good chemical resistance
  • Continuous gasket



BUD -Cat# Grey Cover

BUD -Cat# Clear cover

Drawings

L (in)

W (in)

D (in)

PIP-11760

PIP-11760-C

5.118

3.15

1.378

0.11

PIP-11763

PIP-11763-C

5.118

3.15

3.346

0.13

PIP-11766

PIP-11766-C

5.118

5.118

1.378

0.13

PIP-11767

PIP-11767-C

5.118

5.118

2.362

0.14

PIP-11772

PIP-11772-C

7.087

7.087

2.953

0.19

PIP-11774

PIP-11774-C

7.087

7.087

4.921

0.22

PIP-11775

PIP-11775-C

10.039

7.087

2.953

0.23

PIP-11777

PIP-11777-C

10.039

7.087

4.921

0.25
