NEMA Boxes Heavy Duty Plastic NEMA Box

Font size: Decrease font Enlarge font

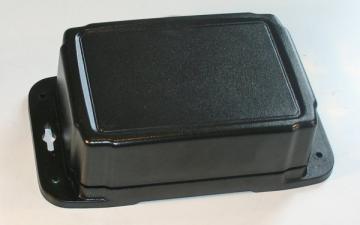

Heavy duty, impact resistant, NEMA plastic box designed for harsh environments



Design Features

  • Designed to IP 66 of IEC 529 and NEMA 4, 4X, 12, 13.
  • Cover attaching screws are outside the Silicon Rubber gasket sealing area, thus preventing ingress of moisture and dust.
  • Mounting flanges for easy wall installation.
  • Internal bosses allow mounting of PCB’s horizontally or for connection of terminals
  • Cover screws are #4-40 stainless steel, non-magnetic and fasten into threaded brass inserts.
  • UL 94V-0 flame rating.
  • Polycarbonate material has an operating temperature of -40°C to +120°C and is UV stabilized.
  • Textured/ recessed surface area suitable for printed graphics, labels, membrane keypads.



PLASTIC NEMA BOX HEAVY DUTY
Catalog Number Color L x W x D (Inch)
HD-7600 Black 6.62 x 4.68 x 2.37
HD-7601 Black 5.50 x 3.50 x 1.62
HD-7602* Black 4.63 x 4.63 x 2.36
