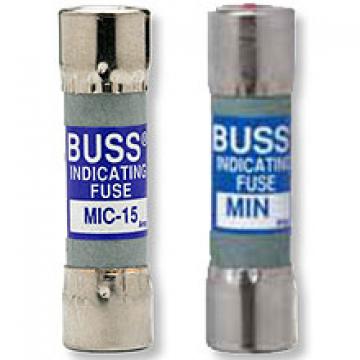

MIC & MIN Indicating Fast-Acting Fuse

Font size: Decrease font Enlarge font

Class: Supplemental
Description: Fastacting, pin indication fuse.

Body Material: FIBER TUBE
Ferrule Material: BRONZE
Ferrule Plating: NICKEL

Ratings:
Volts: 250Vac (1-15A); 32V (20-30A)
Amps: 1-30A
IR: 35A (1A @250Vac); 100A (2-3A @250Vac); 200A (5-10A @250Vac); 750A (15A @250Vac); 10kA (20-30A @32V); 35A (1A @250Vac)
Agency Information: CE, Std. 248-14,
MIC - 0-15A UL Listed, 125Vac/10kA IR Guide JDYX, File E19180, MIN - 1-5A CSA Certified, Class 1422-01, File 53787.

General infomation
• Use in power electronic circuits in which fuse opening must be quickly apparent.
• Opening of fuse results in ejection of end pin.
• Type MIN has a red pin for high visibility.
• Type MIC has a silver-plated pin for positive, electrical signal activation.
• Use Buss fuseblock BM series for visual indication.
• Use Buss HPF-C panel-mounted fuseholders for visual indication and signal-block 3839 for signal activation.

Features and Benefits
• Type MIN has a “red” pin indicator providing visual identification of failed circuits, resulting in faster trouble shooting (reduced circuit downtime).
• Type MIC has silver-plated pin transmitting an electrical signal indicating location of a failed circuit, resulting in faster troubleshooting (reduced circuit downtime).

Typical Applications
• Control Circuits
• PLC Circuits
• Electronic Circuits

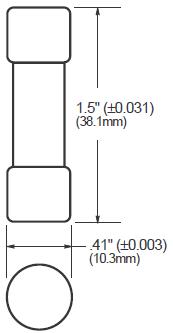

Dimensions:
13⁄32” x 1 1⁄2” (10.3 x 38.1mm) 5AG

Electrical Ratings (Catalog Symbol and Amperes)

250Vac; UL Listed 32 Volts AC
MIC-1 (IR = 35A) MIC-5 (IR = 200A) MIC-20 (IR = 10kA)
MIC-2 (IR = 100A) MIC-10 (IR = 200A) MIC-25 (IR = 10kA)
MIC-3 (IR = 100A) MIC-15 (IR = 750A) MIC-30 (IR = 10kA)

MIC - (1-15) UL Listed 125Vac / IR = 10kA

Electrical Ratings (Catalog Symbol and Amperes)

250Vac 32Vac
MIN-1 (IR = 35A) MIN-5 (IR = 200A) MIN-20 (IR = 10kA)
MIN-2 (IR = 100A) MIN-10 (IR = 200A) MIN-25 (IR = 10kA)
MIN-3 (IR = 100A) MIN-15 (IR = 750A) MIN-30 (IR = 10kA)


Test Specifications

Load Opening Time
110% Indefinitely
135% 1 hr. (max.)

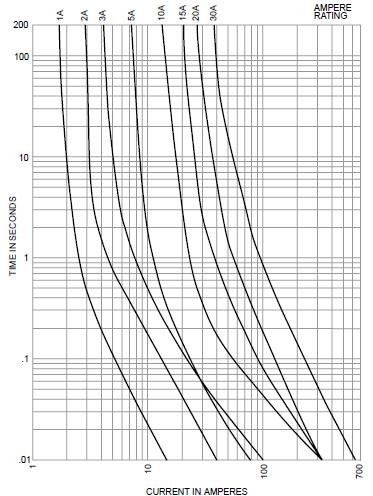

Time-Current Characteristic Curves–Average Melt (Full Size Curves Available)

Carton Quantity and Weight

Ampere Ratings Carton Qty Weight*
Lbs. Kg.
MIC 0-15A 100 1.5 650
MIN 1-5A

*Weight per carton.
